Celadon Ringed Vessel

Houdini · From a 51-point profile to an actual Mantra render

A celadon ringed vessel rendered in Houdini Mantra, with an open rim, soft reflections and ground-contact shadows
A celadon ringed vessel rendered in Houdini Mantra, with an open rim, soft reflections and ground-contact shadows
HoudiniModelingProcedural geometryMaterialsRenderingVerification

Creative goal

Use DCC-MCP to create a procedural ceramic vessel with real thickness and an opening, retain the profile-control chain, verify ground contact, glaze, actual rendering and save/reopen behavior, and publish reusable inputs and geometry.

A 51-point profile defines the rings, shoulder, rim, inner wall and base thickness. A 144-segment revolve and two subdivision levels produce an editable vessel with 115,200 faces; celadon glaze, three softboxes and a warm-gray floor complete the actual product-style hero image.

Models and versions

Production, post-production and review are attributed separately. Unknown means records are insufficient; it does not mean the current model produced the work.

Planning and art direction
Unknown · Reasoning effort:Unknown

Existing production records do not identify the specific model or reasoning effort; historical gaps are not filled using the current default model or this review.
Original work; published authorship, software versions and production evidence are retained.

Original asset creation / DCC operations
Unknown · Reasoning effort:Unknown

Existing production records do not identify the specific model or reasoning effort; historical gaps are not filled using the current default model or this review.
Original work; published authorship, software versions and production evidence are retained.

Tool and code implementation
Unknown · Reasoning effort:Unknown

Existing production records do not identify the specific model or reasoning effort; historical gaps are not filled using the current default model or this review.
Original work; published authorship, software versions and production evidence are retained.

Original post-production
Unknown · Reasoning effort:Unknown

Existing production records do not identify the specific model or reasoning effort; historical gaps are not filled using the current default model or this review.
Original work; published authorship, software versions and production evidence are retained.

Reference-image generation / input
Unknown · Reasoning effort:Unknown

The existing public workflow records no image-generation step; no image model is inferred from the software or imagery.
Reference inputs and native DCC results are recorded separately.

Independent visual review
Unknown · Reasoning effort:Unknown

An existing review report states its model and effort, but the accepted configuration receipt from that time has not been verified; both fields remain unknown.
On 2026-10-07, the published images were actually viewed to assess composition, materials and readability; the work was neither rerendered nor modified.

Independent technical review
Unknown · Reasoning effort:Unknown

An existing review report states its model and effort, but the accepted configuration receipt from that time has not been verified; both fields remain unknown.
On 2026-10-07, public pages, downloads, hashes, archives and native file structures were checked; DCC applications were not rerun, and interactive editing was not acceptance-tested.

Attribution and site-publication review for this revision
Unknown · Reasoning effort:Unknown

The original task record self-reported gpt-6-astra / ultra, but the original accepted-configuration receipt was not exported and cannot currently be verified. The model and reasoning effort therefore remain unknown. This self-reported history is only a lead for future verification, not backend identity attestation or retrospective attribution of the original production or earlier artistic review.
On 2026-10-07, reviewed attribution fields, validation code and desktop/mobile page screenshots for the final version of PR #17, head bfa80ead316eb182863ffb5d6f48b71f1c87c766. Did not rerun DCC applications, create the original assets or repeat artistic-quality acceptance.

Version history

  • Documentation revision 2026-10-07 ·

    Added stage-specific model names, reasoning effort and independent-review scope. Historical unknowns remain unknown; image, film and native-project bytes are unchanged, and this does not count as a new case.

  • Added publication-review attribution record ·

    Added the configured model and reasoning effort for this attribution and site-publication review, noting that the original configuration receipt was not exported. This does not rewrite the original production or earlier review records; artwork bytes are unchanged.

  • Corrected publication-review attribution evidence status ·

    Retained the original task's self-reported configuration and review scope as historical leads. Because the original accepted-configuration record could not be verified, the corresponding model, reasoning effort and record status were corrected to unknown. Existing revisions, assets and score evidence are preserved; structural validation does not establish verified attribution.

English translation. Read the original Chinese text. Source evidence, downloads and native artwork retain their original language.

Prompt

Reusable prompt template
Using only typed DCC-MCP, create a celadon ringed ceramic vessel in a separate Houdini host confirmed to contain an empty scene. Do not modify scenes belonging to other tasks or directly run Houdini asset-creation scripts. Create a 51-point radius/height profile that continuously defines the base, ringed outer wall, shoulder, rim and inner wall, then revolve it around the Y axis in 144 segments. Add two Subdivide levels and vertex normals. Retain the complete editable SOP chain.

Use a Principled Shader with celadon-green basecolor=[0.035,0.21,0.18], disable point colors, and set roughness=0.30, coat=0.35 and coatrough=0.24. Set the floor to basecolor=[0.46,0.40,0.32] and roughness=0.65; both the floor's top surface and the model's lowest point must be at y=0. Use no external textures. Set up a 90 mm lens and three grid softboxes, keeping the full opening, shoulder rings and base contact shadow visible.

First save and render an actual intermediate image. Make limited lighting and composition adjustments based on the image, then produce an actual 1200×1500 Mantra hero image with PBR Ray Tracing, 4×4 pixel samples and a maximum of 16 secondary rays. Use `$HIP/hero.png` for the output, save the project, wait for the isolated rendering job to finish and check the file. Then reopen the project and read back geometry counts, materials, camera and render path.

Use `--require-gateway` and a stable `--agent-session-id` for all formal CLI calls. Begin with inventory, scoped search and load-skill/describe, then call tools according to their actual schemas. Record actual tool names, requests/responses and failures; do not substitute a tool's applied field for checking the actual file dimensions. Explicitly redact public documents using `CASE_DIR` / `JOB_DIR`, audit private metadata in the native project, and retain the author and MIT license. State any missing capabilities, and never present generated images or historical renders as renders from this round.

Reusable production instructions organized around the typed steps actually executed in this round; not a verbatim transcript of the user's words. Profile inputs and actual call responses are attached separately.

Software and tools

Software / renderer
Houdini 22.0.368 · Mantra PBR Ray Tracing
Actual adapter
dcc-mcp-houdini 0.43.1 · clean source 9957e58e987147e448819384a0e8a8be5756de18
Core / CLI / Gateway
0.20.28 · Installed version matches runtime
Final render
1200 × 1500 · 4 × 4 pixel samples · max rays 16
Project scope
Local HIP reopening passed; public OBJ + pixel-identical PNG + recipe
  • create_curve_guides / lathe_profile

    Write the actual 51-point profile and revolve it around the Y axis in 144 segments to form the inner and outer walls, rim and base thickness.

  • create_node / connect_nodes / set_node_parms / add_normals

    Build two subdivision levels, normals, contact floor and backdrop, and set final parameters; no direct asset-creation scripts were used.

  • create_material / assign_material / create_camera / create_light

    Actually create the Principled Shader glaze, three grid softboxes and lens, and read back the final parameters.

  • save_hip_file / load_hip_file / render_rop / get_render_job

    Save and reopen the local project; run the isolated Mantra job and verify that its output was actually written to disk.

  • export_geometry / import_geometry / get_geometry_info

    Actually export an OBJ and reimport it into the same Houdini instance, checking counts and bounding box.

  • run_python_file (PNG metadata cleanup)

    The lack of a dedicated typed sanitization capability was recorded through scoped search. A public, parameterized PNG cleaner was run through the formal MCP automation route, removing only Artist text and preserving all IDAT and RGBA pixels.

Refer to project documentation for installation, compatibility and current capabilities. This case's actual environment and execution evidence are recorded above.

Step-by-step process

  1. Define the vessel profile

    A continuous 51-point profile defines the base thickness, ringed outer wall, shoulder, rim and inner wall; the original input is published in profile.json.

  2. Revolve and subdivide

    Revolve around the Y axis in 144 segments; two Subdivide levels and vertex normals produce 115,776 points and 115,200 faces.

  3. First actual render

    Set up the celadon glaze, three softboxes and floor. Keep the first preview's strong highlights and tighter framing as an actual intermediate result.

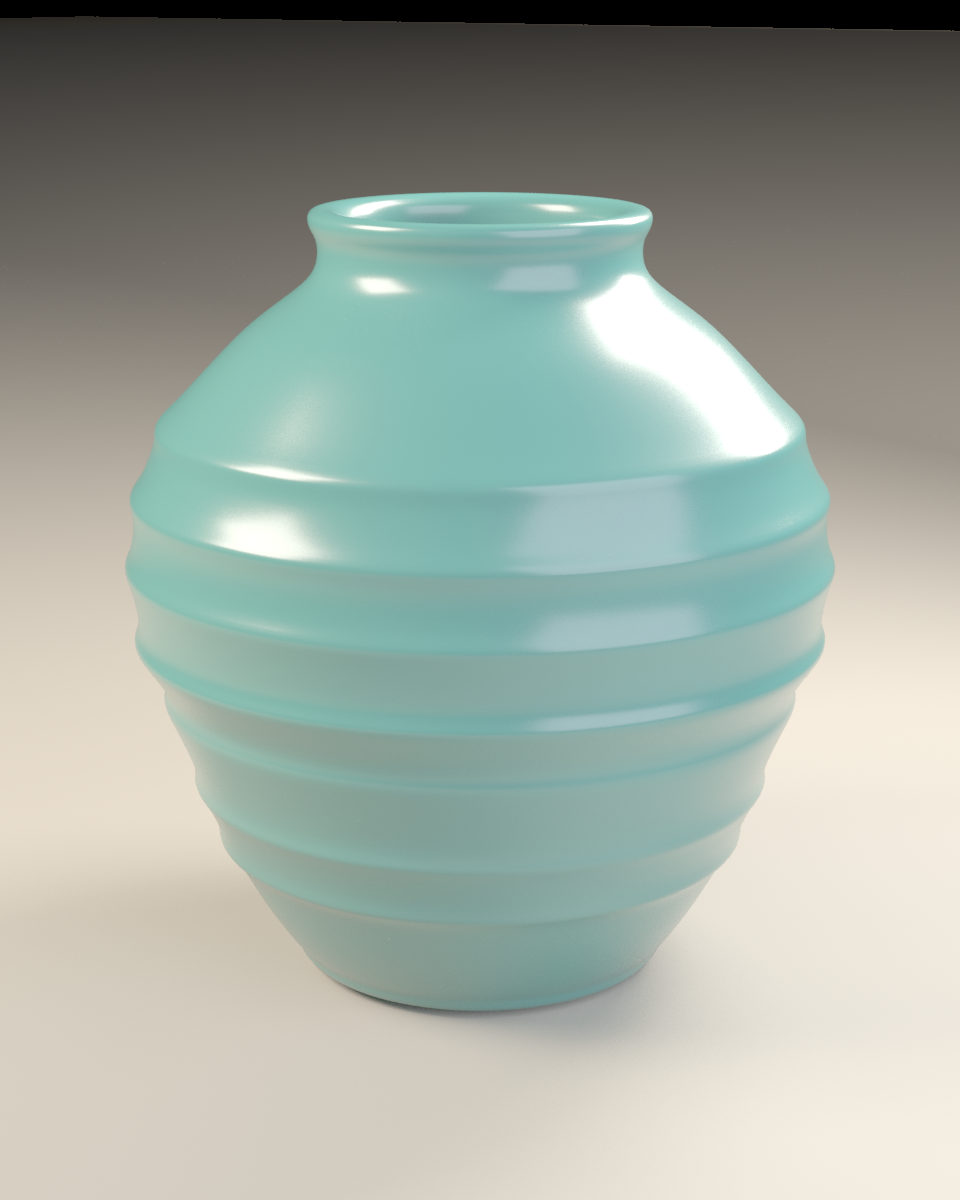

    First actual Mantra preview of the celadon ringed vessel, with stronger highlights and tighter framing
    First actual Mantra preview of the celadon ringed vessel, with stronger highlights and tighter framing
  4. Adjust lighting and negative space

    Reduce the key and rim lights, increase roughness and switch to a 90 mm lens; the black sky in the intermediate image demonstrates the subsequent need for a backdrop.

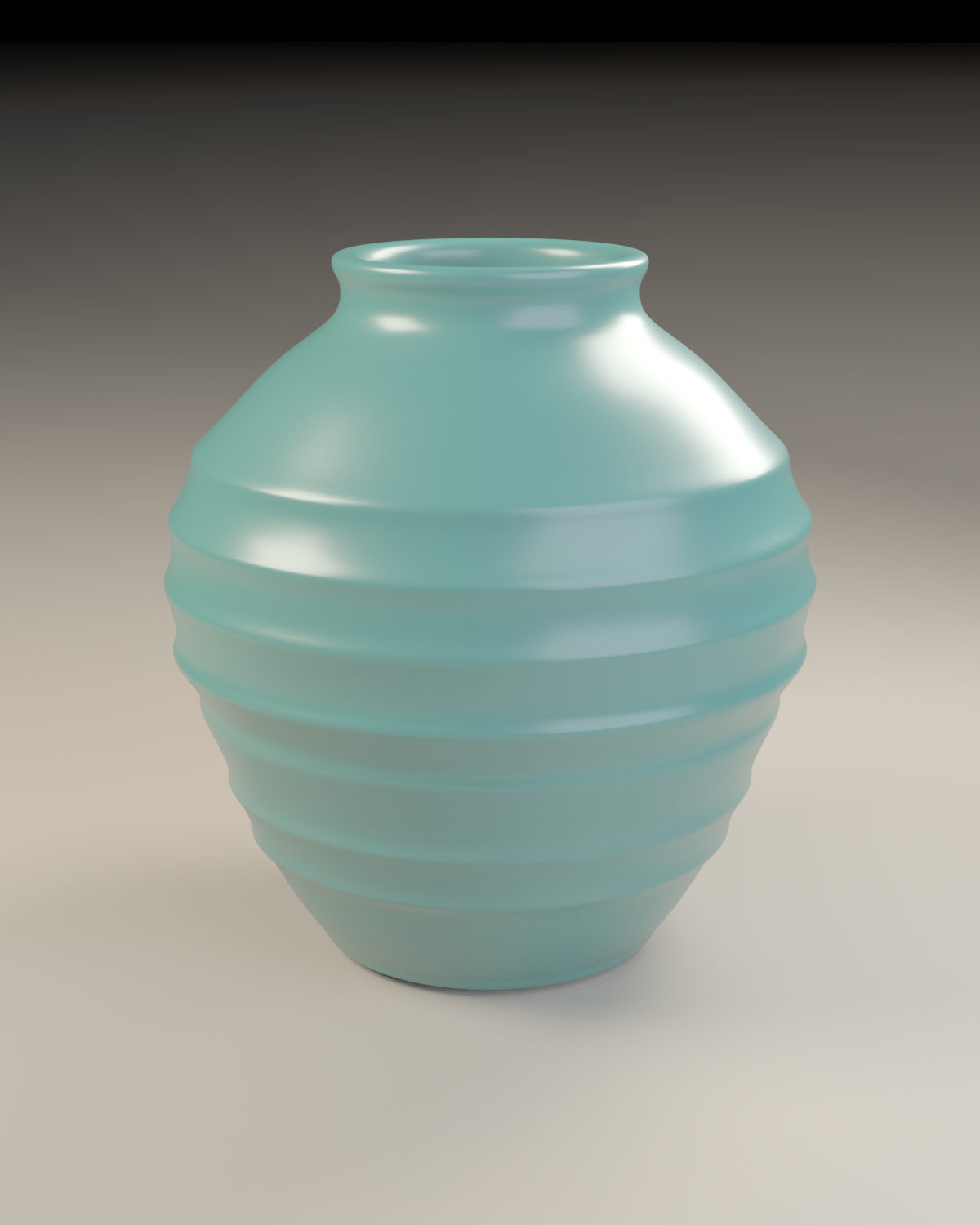

    Actual intermediate render after exposure and composition adjustments, with black sky still visible at the top
    Actual intermediate render after exposure and composition adjustments, with black sky still visible at the top
  5. Actual hero image and reopening verification

    Complete the 1200×1500 hero image after typed backdrop adjustments; reopen the local HIP and check geometry, glaze, camera, sampling and the relative output path.

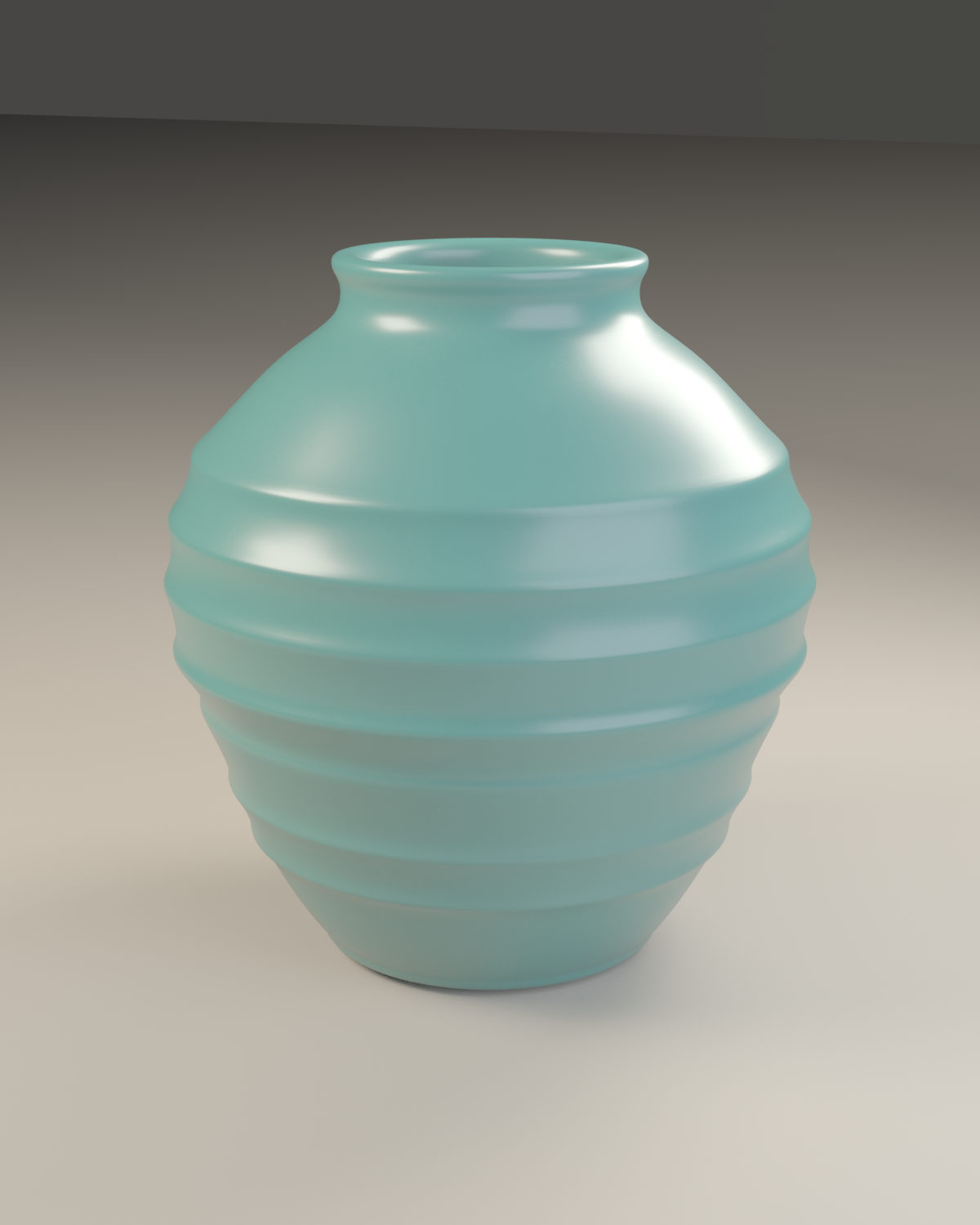

    This round's final 1200×1500 Mantra product-style hero image
    This round's final 1200×1500 Mantra product-style hero image
  6. Publish geometry and evidence

    The OBJ was actually exported and reimported into the same Houdini instance, with matching counts and bounding box. The HIP is withheld because it contains private metadata; inputs, recipe, logs and license are public. MCP automation cleaned the original PNG's automatic Artist metadata into a pixel-identical public copy, while the original remains local.

Models and evaluation records

Public examples, not a blind evaluation set or leaderboard. Missing values stay unrecorded and are not averaged or ranked.

No runs under a shared protocol are recorded yet; historical attribution remains in the existing stage-specific records.

Exact model version
Not recorded
Run hardware
Not recorded
Seed / attempt
Not recorded
Wall time / tool calls
Not recorded

View original checks and limits · Machine-readable records · Comparison protocol

Model preview is not enabled: eligible assets and complete ecosystem evidence are still required.

Results

Final Mantra render of the celadon ringed vessel
Actual 1200×1500 single-frame Mantra render · Web JPEG is an encoding conversion only
This round's first Mantra preview
Actual 960×1200 intermediate image; a discrepancy between the tool's resolution applied field and the actual dimensions is documented

Verification and boundaries

Check records; each row distinguishes historical measurements from this review.
CheckResultObservations and supporting evidence
Dedicated empty scenePassedInitial typed scene readback: hip_has_file=false, /obj count=0. Existing concurrent scenes were not edited.
Actual final Mantra outputPassedCompleted in 115.92 seconds; isolated worker stopped, expected/written outputs 1/1, verified, no warnings. PNG IHDR 1200×1500; file is nonblank.
Native save and reopenPassedTyped private save and load succeeded; reopened scene hip_has_file=true and /obj count=9. Reopened SOP, camera, glaze, backdrop and renderer readbacks matched final settings. Native stays local.
Geometry and floor contactPassed115,776 points / 115,200 primitives / 460,800 vertices. Bounds size 2.06376088×2.24906254×2.06376076; minimum Y=0. Floor top Y=0.
Final camera and materialPassedCamera res=1200×1500, focal=90; glaze basecolor=[0.035,0.21,0.18], rough=0.30, coat=0.35, coatrough=0.24 after reopen.
OBJ export and same-Houdini reimportPassedTyped exported 35,869,290 bytes, file probe confirmed OBJ; completed typed reimport reproduces all point/primitive/vertex counts and bounds. OBJ text audit found no private paths, hosts or credentials.
Gateway audit checkpointPassedGateway-recorded session checkpoint: 89 total, 89 successful, 0 failed. Public response trace is a selected actual tool-call subset; search/load/control operations are not all reproduced there.
Preview resolution report mismatchFailedset_render_settings applied [640,800]/unsupported=[] but actual preview was 960×1200. Mantra override_camerares remained 0. Final camera resolution was set with typed set_node_parms and actual final dimensions independently checked. This run did not use the later adapter patch.
Native HIP public privacyFailedCPIO variables, native authors, HDA library paths and Base64 Stash artist/hostname contain private metadata. Existing typed save/project/tagging tools do not fully sanitize these. HIP is withheld from the public folder and ZIP.
Public PNG metadata via MCP automationPassedOnly automatic Artist tEXt removed to explicit -public copies by adapter-exposed run_python_file. CRC, unchanged compressed IDAT hash, decoded RGBA hash and dimensions pass; independent Pillow decoded comparison also passes. Originals retained privately. This publication step uses MCP automation because a dedicated typed cleanup tool was not found.
Fresh no-Render CLI replayPassedStrict success/empty-scene guard fixtures 22/22 pass. Fresh empty owned host completed 47 recipe steps plus empty/final checks (49 typed responses), with no repeated render. OBJ bytes and geometry counts/bounds exactly match original. CLI/Core 0.20.28 and adapter 0.43.1; gateway observed 0.20.22/transitional, recorded separately from main production.

Evidence limits

  • The HIP is currently withheld because of private native metadata; complete sanitization remains a capability gap. Editable typed inputs and a CLI replay entry point are provided.
  • The OBJ does not retain the procedural SOP chain, complete shaders or lighting; OBJ reimport into other DCC applications was not verified in this round.
  • GUI interaction, other Houdini versions, Karma, animation and closed-manifold geometry were not verified in this round.
  • This production round did not use the subsequent resolution-fix PR; the actual final pixel dimensions were ensured through typed camera settings and file parsing.
  • Only responses were saved early on. The recipe was organized from the actual inputs and passed a render-free replay in a second empty host; the complete rendering workflow was not repeated.
  • PNG metadata cleanup used a discovered MCP automation tool; no dedicated typed sanitization capability was found. CRC, IDAT and RGBA pixels remain identical.
