Weathered Wooden Crate

From a Designer material graph to Blender lookdev

A long olive-green weathered wooden crate rendered in Blender Cycles, with metal corner fittings, latches and fractured battens
A long olive-green weathered wooden crate rendered in Blender Cycles, with metal corner fittings, latches and fractured battens
BlenderSubstance 3D DesignerModelingProcedural materialsCross-application LookdevRenderingVerification

Creative goal

Build a weathered wooden crate approximately 2.2 m long from the existing reference, retaining broad planks, thin battens, metal corner fittings and curved latches. Control aged paint and rust procedurally, use actual geometry for fracture silhouettes, and maintain correct color spaces and physical texture density for exported PBR textures in Blender.

Separate wood grain, peeling paint, rust and scratches into editable material graphs, then realize thickness, fractures, fibers and contact shadows in a reopenable crate scene. The final lookdev combines 178 crate meshes, two Designer graphs and 13 packed textures.

Models and versions

Production, post-production and review are attributed separately. Unknown means records are insufficient; it does not mean the current model produced the work.

Planning and art direction
Unknown · Reasoning effort:Unknown

Existing production records do not identify the specific model or reasoning effort; historical gaps are not filled using the current default model or this review.
Original work; published authorship, software versions and production evidence are retained.

Original asset creation / DCC operations
Unknown · Reasoning effort:Unknown

Existing production records do not identify the specific model or reasoning effort; historical gaps are not filled using the current default model or this review.
Original work; published authorship, software versions and production evidence are retained.

Tool and code implementation
Unknown · Reasoning effort:Unknown

Existing production records do not identify the specific model or reasoning effort; historical gaps are not filled using the current default model or this review.
Original work; published authorship, software versions and production evidence are retained.

Original post-production
Unknown · Reasoning effort:Unknown

Existing production records do not identify the specific model or reasoning effort; historical gaps are not filled using the current default model or this review.
Original work; published authorship, software versions and production evidence are retained.

Reference-image generation / input
Unknown · Reasoning effort:Unknown

The source records mention a Codex image-generated reference but do not record the specific model or effort; the reference image is not treated as a DCC deliverable.
Reference inputs and native DCC results are recorded separately.

Independent visual review
Unknown · Reasoning effort:Unknown

An existing review report states its model and effort, but the accepted configuration receipt from that time has not been verified; both fields remain unknown.
On 2026-10-07, the published images were actually viewed to assess composition, materials and readability; the work was neither rerendered nor modified.

Independent technical review
Unknown · Reasoning effort:Unknown

An existing review report states its model and effort, but the accepted configuration receipt from that time has not been verified; both fields remain unknown.
On 2026-10-07, public pages, downloads, hashes, archives and native file structures were checked; DCC applications were not rerun, and interactive editing was not acceptance-tested.

Attribution and site-publication review for this revision
Unknown · Reasoning effort:Unknown

The original task record self-reported gpt-6-astra / ultra, but the original accepted-configuration receipt was not exported and cannot currently be verified. The model and reasoning effort therefore remain unknown. This self-reported history is only a lead for future verification, not backend identity attestation or retrospective attribution of the original production or earlier artistic review.
On 2026-10-07, reviewed attribution fields, validation code and desktop/mobile page screenshots for the final version of PR #17, head bfa80ead316eb182863ffb5d6f48b71f1c87c766. Did not rerun DCC applications, create the original assets or repeat artistic-quality acceptance.

Partial camera attempt / DCC operations
gpt-6-astra · Reasoning effort:ultra

The 2026-10-12 task requested and accepted gpt-6-astra / ultra; this is not independent backend identity attestation.
Only this pass’s cameras, actual native save/reopen, export and completed frames; excludes original asset production and the unfinished target.

Stage-excerpt encoding and records
gpt-6-astra · Reasoning effort:ultra

The 2026-10-12 task requested and accepted gpt-6-astra / ultra; this is not independent backend identity attestation.
Only the 50-frame partial delivery, 55-frame checkpoint, decode and reuse documentation; not full-film final acceptance.

Version history

  • Documentation revision 2026-10-07 ·

    Added stage-specific model names, reasoning effort and independent-review scope. Historical unknowns remain unknown; image, film and native-project bytes are unchanged, and this does not count as a new case.

  • Added publication-review attribution record ·

    Added the configured model and reasoning effort for this attribution and site-publication review, noting that the original configuration receipt was not exported. This does not rewrite the original production or earlier review records; artwork bytes are unchanged.

  • Corrected publication-review attribution evidence status ·

    Retained the original task's self-reported configuration and review scope as historical leads. Because the original accepted-configuration record could not be verified, the corresponding model, reasoning effort and record status were corrected to unknown. Existing revisions, assets and score evidence are preserved; structural validation does not establish verified attribution.

  • Partial camera checkpoint ·

    Adds a 2.083-second native stage excerpt, 55-frame checkpoint, exercised recipe and failure evidence. The six-second target is unmet; historical artwork and attribution remain intact.

English translation. Read the original Chinese text. Source evidence, downloads and native artwork retain their original language.

Prompt

Reusable prompt template
Use DCC-MCP to create a weathered wooden crate approximately 2.2 m long in Substance 3D Designer and Blender. Use broad planks, 30 mm battens, riveted corner fittings and curved latches. Olive-green paint should peel naturally, with rust and scratches independently controlling metalness and roughness. Battens should have layered fractures and attached, tapered wood fibers; the lower front plank should have a tapered dent. Export 2048×2048 wood and 1024×1024 steel PBR textures, retaining editable SBS/SBSAR files. Use sRGB color textures and Non-Color data textures. Maintain a physical wood-grain density of approximately one repeat per 0.45 m. Ensure actual ground contact for all four feet. Use Cycles to render the hero image, fracture and dent details, a UV check image and complete node graphs. Reopen the saved scene and materials, then verify packed texture bytes, mesh counts, bounding box and file hashes. Record actual MCP tool calls; explicitly report unavailable capabilities, without bypassing them through direct application scripts.

The following prompt preserves the original asset-production adaptation from the 2026-10-01 curation, not a verbatim conversation. The 2026-10-12 pass only attempted new camera work; it did not repeat the full modeling/material workflow, and the six-second film remains incomplete. The actual camera recipe and stage evidence are linked separately.

Software and tools

Material software
Substance 3D Designer 16.0.0
Modeling and rendering
Blender 5.2.0 LTS · Cycles · 128 samples
Hero image
1600 × 1600 · Recorded in the source report
Graph screenshots
DCC-CUA 1.8.2 · Complete views
Adapter / Core
Not publicly recorded (unrecorded)
Measured host for this attempt
Blender 4.5.14 LTS · Cycles CPU
MCP for this attempt
dcc-mcp-blender 0.2.16 · Core 0.20.42
Delivered stage excerpt
960×540 · 24 fps · 50 native frames · Approximately 2.083 seconds · Silent
Production status
Incomplete: 55/144-frame checkpoint; six-second target unmet
Render settings
12 samples · OpenImageDenoise · Two render threads
  • DCC-MCP / Blender (source report)

    The source README states that modeling was completed through DCC-MCP; specific tool names, parameters and original tools/call logs are not public.

  • Designer material-graph workflow (source report)

    Editable SBS and SBSAR files, complete node graphs and natively exported textures are public; specific MCP calls and adapter versions are not public.

  • DCC-CUA 1.8.2

    The source manifest records the node-graph screenshot provider. Screenshots show 37 wood and 35 steel authoring nodes, without expanding internal Adobe library graphs.

  • parent_object / set_keyframe / save_scene / open_scene / render_scene

    Actual calls added camera animation and saved/reopened the scenes; 55 frames reached disk. Parenting-verification and host-exit evidence is retained; missing frames are not claimed as complete.

  • export_gltf / import_file

    Actual geometry-only GLB export/import into an empty scene verified 179 meshes and two sampled bounds, without claiming material equivalence.

  • execute_python

    Recorded MCP fallback for resource settings absent from typed tools, plus camera-matrix and detailed render-state sampling during replay acceptance.

Refer to project documentation for installation, compatibility and current capabilities. This case's actual environment and execution evidence are recorded above.

Step-by-step process

  1. Establish structure and proportions

    Build a long crate of approximately 2.2 m from the existing generated reference, using broad planks, 30 mm battens, corner fittings and curved latches. The reference guides appearance only; dimensions, damage and weathering locations are artistic estimates.

    Historical Codex-generated reference image of the weathered wooden crate
    Historical Codex-generated reference image of the weathered wooden crate
  2. Build the aged-paint wood graph

    37 authoring nodes combine Wood Fibers, Grunge Leaky Paint, Shape and Directional Scratches into paint, bare-wood, scratch and height layers. paint_coverage is saved as 0.735, with an additional 16-bit grain output for Blender detail.

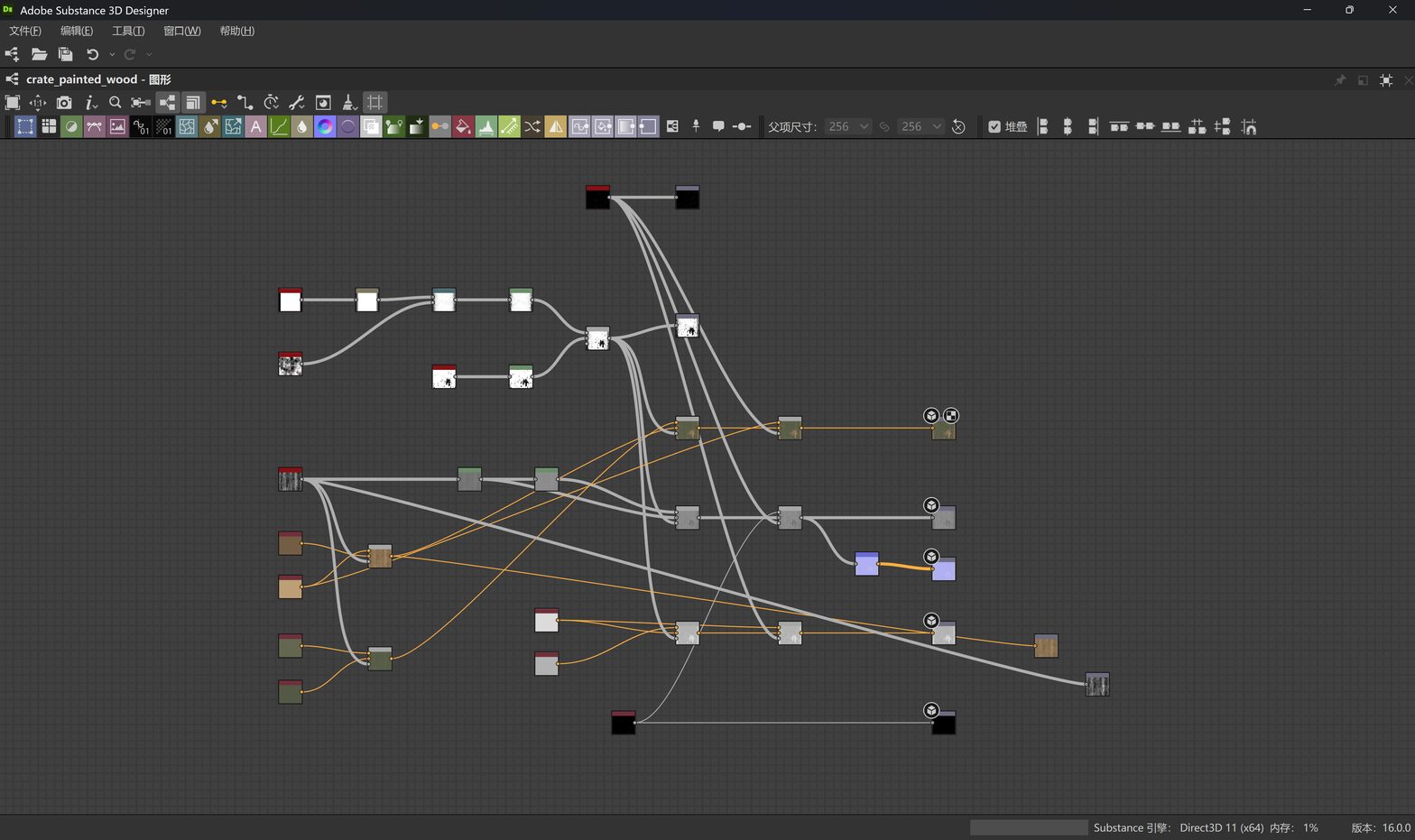

    The complete 37-node aged-paint wood graph in Substance 3D Designer
    The complete 37-node aged-paint wood graph in Substance 3D Designer
  3. Build the rusty-steel graph

    35 authoring nodes use Grunge Rust Fine to separate the nonmetallic rust layer from bare steel; scratches lower roughness and expose bright metal. The source report records roughness values of 0.40, 0.84 and 0.23 for bare steel, rust and polished scratches, respectively.

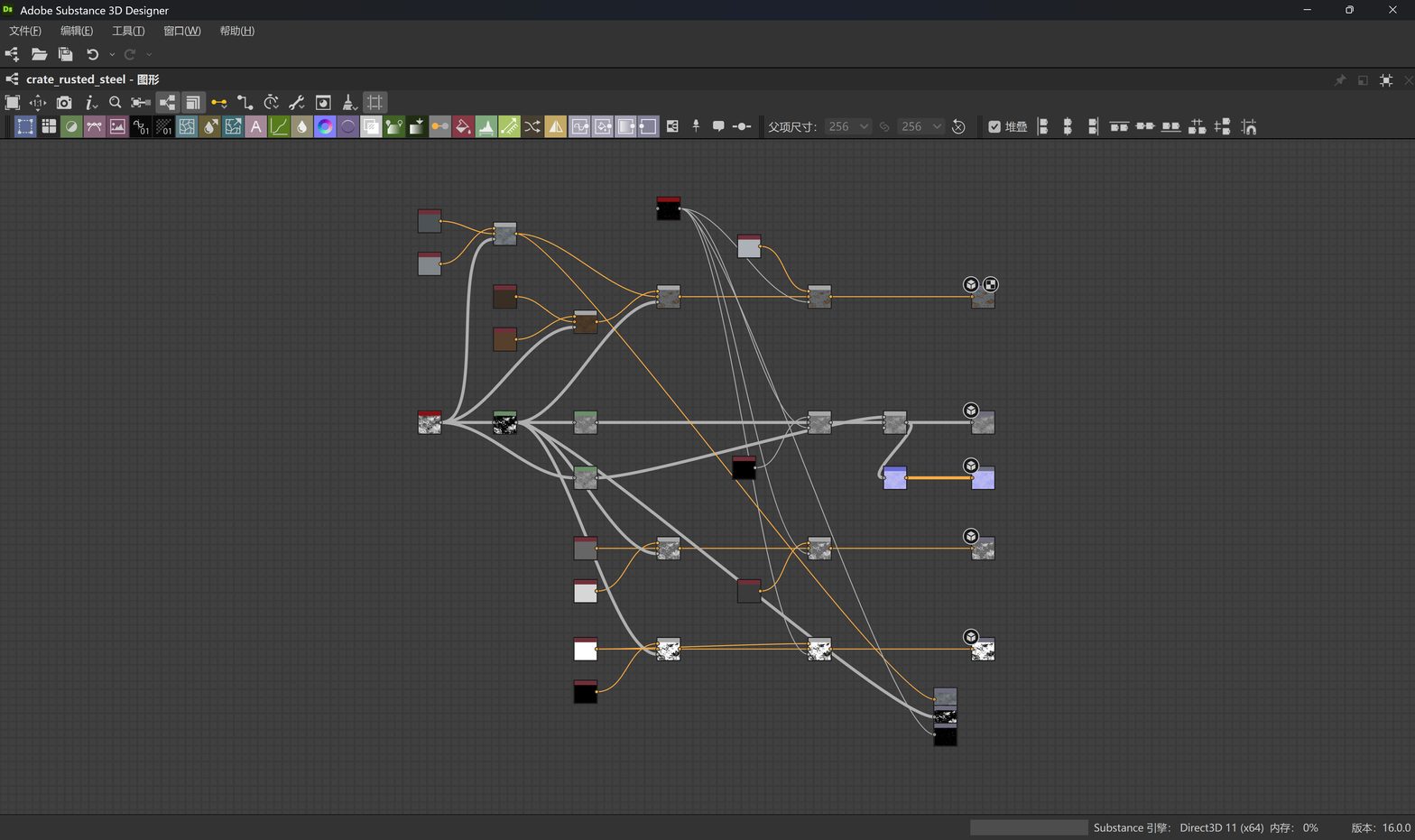

    The complete 35-node rusty-steel graph in Substance 3D Designer
    The complete 35-node rusty-steel graph in Substance 3D Designer
  4. Build fractures and fibers with geometry

    The crate is recorded as having 178 meshes, including 83 wood meshes and 59 attached-fiber meshes. Layered fractures and tapered dents alter the silhouette. Two battens use native 16-bit height and fine wood grain, with displacement range 0.004 m and midlevel 0.52.

    Layered wood silhouette and metal-reflection details on a fractured batten
    Layered wood silhouette and metal-reflection details on a fractured batten
  5. Control UV density and check contact

    BoardUV retains the distribution of paint wear across the boards, while WoodDetailUV unifies fine wood-grain density at one repeat per 0.45 m. UVs overlap and tile. Source validation records a ground gap of 0.0 m for each of the four feet.

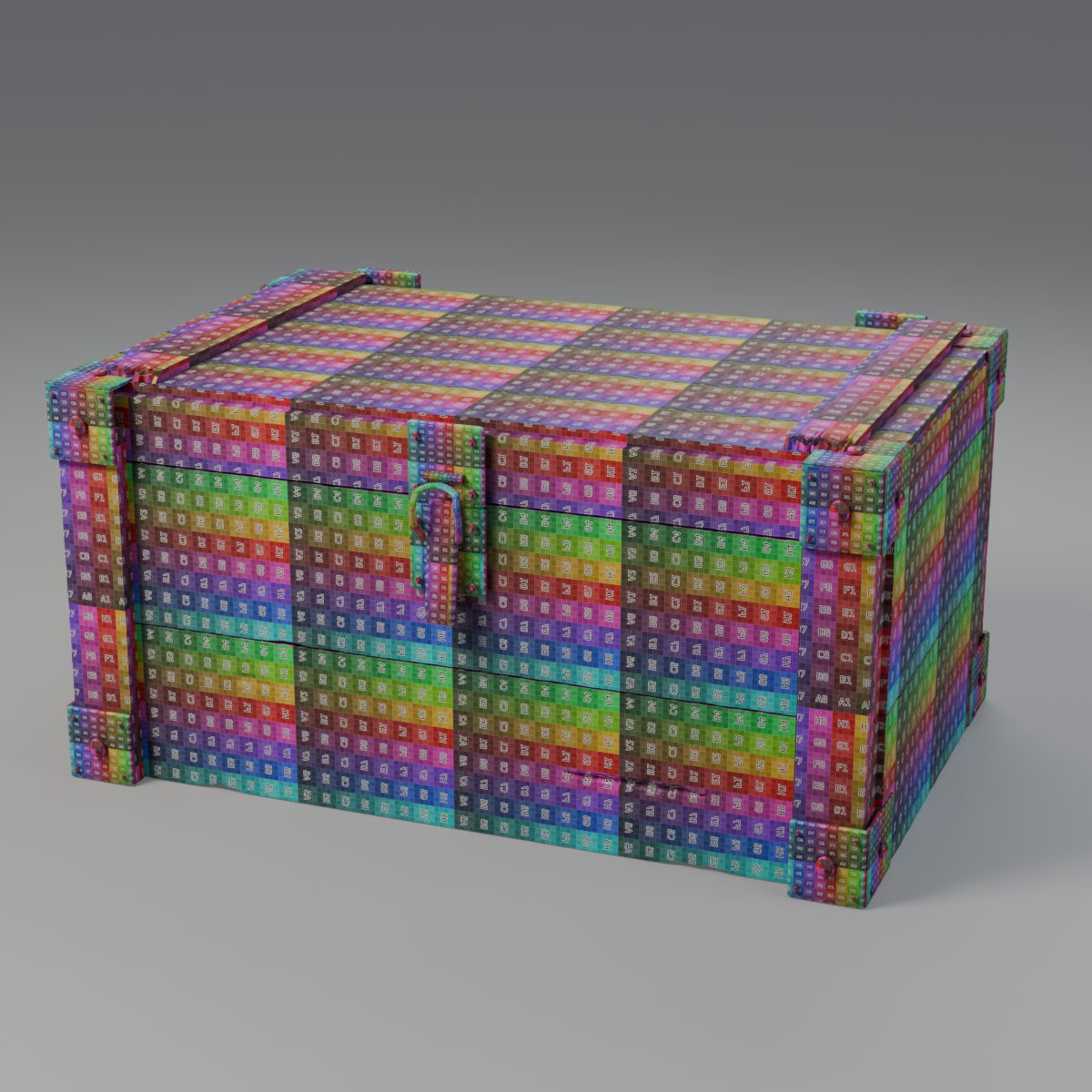

    UV checker inspection image of the complete crate model
    UV checker inspection image of the complete crate model
  6. Pack textures, reopen and render

    Wood textures are exported at 2048×2048 and steel at 1024×1024; the scene packs 13 images. Color uses sRGB and data uses Non-Color. Source records checked packed image bytes and reopened the SBS and Blender scene, rendering the hero image with Cycles at 128 samples.

    Final Cycles hero image
    Final Cycles hero image
  7. Partial checkpoint: actual camera work and replay

    Create wide/detail animation from the pinned source, save/reopen both scenes and exercise the actual replay client. Resources preserve the 55-frame checkpoint and repeated host exits. Only the first 50 frames are shown as stage evidence, not this pass’s finished film.

    Frame 49 of the actual stage excerpt
    Frame 49 of the actual stage excerpt

Models and evaluation records

Public examples, not a blind evaluation set or leaderboard. Missing values stay unrecorded and are not averaged or ranked.

No runs under a shared protocol are recorded yet; historical attribution remains in the existing stage-specific records.

Exact model version
Not recorded
Run hardware
Not recorded
Seed / attempt
Not recorded
Wall time / tool calls
Not recorded

View original checks and limits · Machine-readable records · Comparison protocol

Model preview is not enabled: eligible assets and complete ecosystem evidence are still required.

Results

Download video

Stage evidence; target unmet: 960×540, 24 fps, 50 actual native frames, approximately 2.083 seconds, silent. The six-second, 144-frame film is incomplete and has not received final-quality approval.
Decoded excerpt frames 1, 10, 20, 30, 40 and 50
Stage-check frames decoded from the delivered MP4. They cover only the short excerpt, not full-film acceptance, and are not application-interface screenshots.

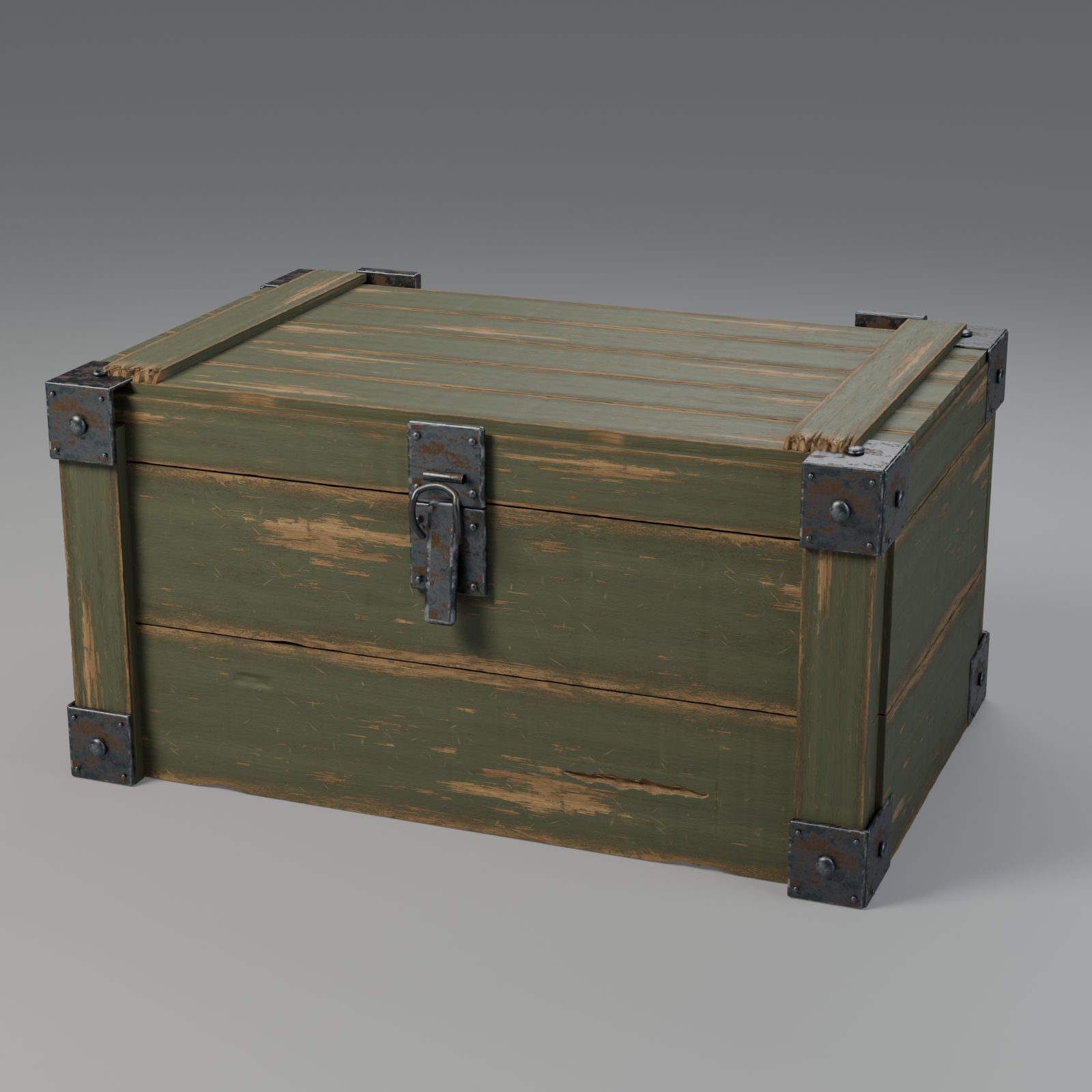

Final Cycles hero image of the weathered wooden crate
Final lookdev: 1600×1600. The current image is a web JPEG; the source PNG is available through the resource links.

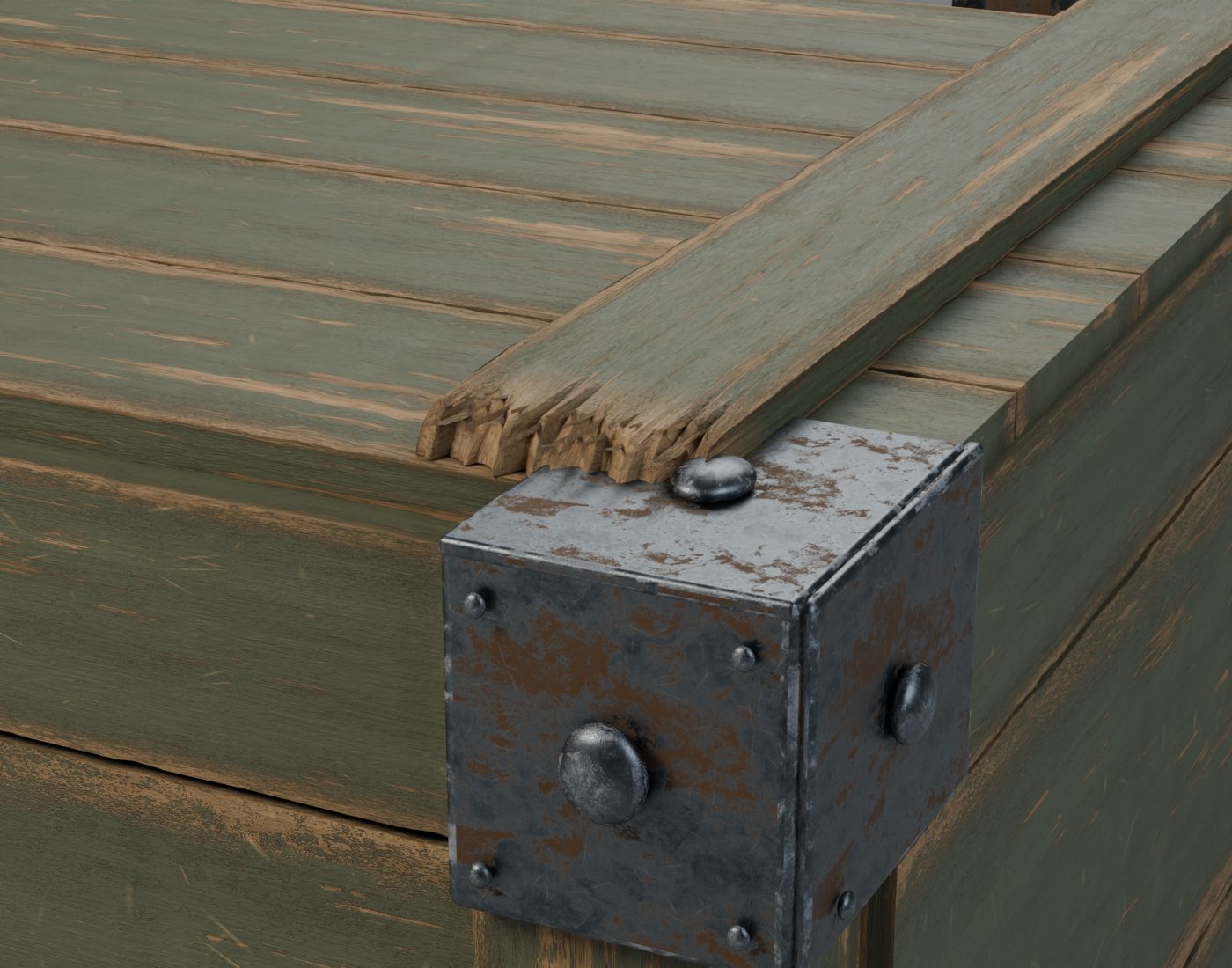

Close-up of a fractured batten and rusty corner fitting
The fractured silhouette comes from geometry; the battens also use true displacement.
Dent and attached fibers on the lower front plank
Tapered dent and fiber details.
Exported aged-paint wood Base Color
Web preview of the wood Base Color; original texture 2048×2048.
Exported rusty-steel Base Color
Steel Base Color; original texture 1024×1024.

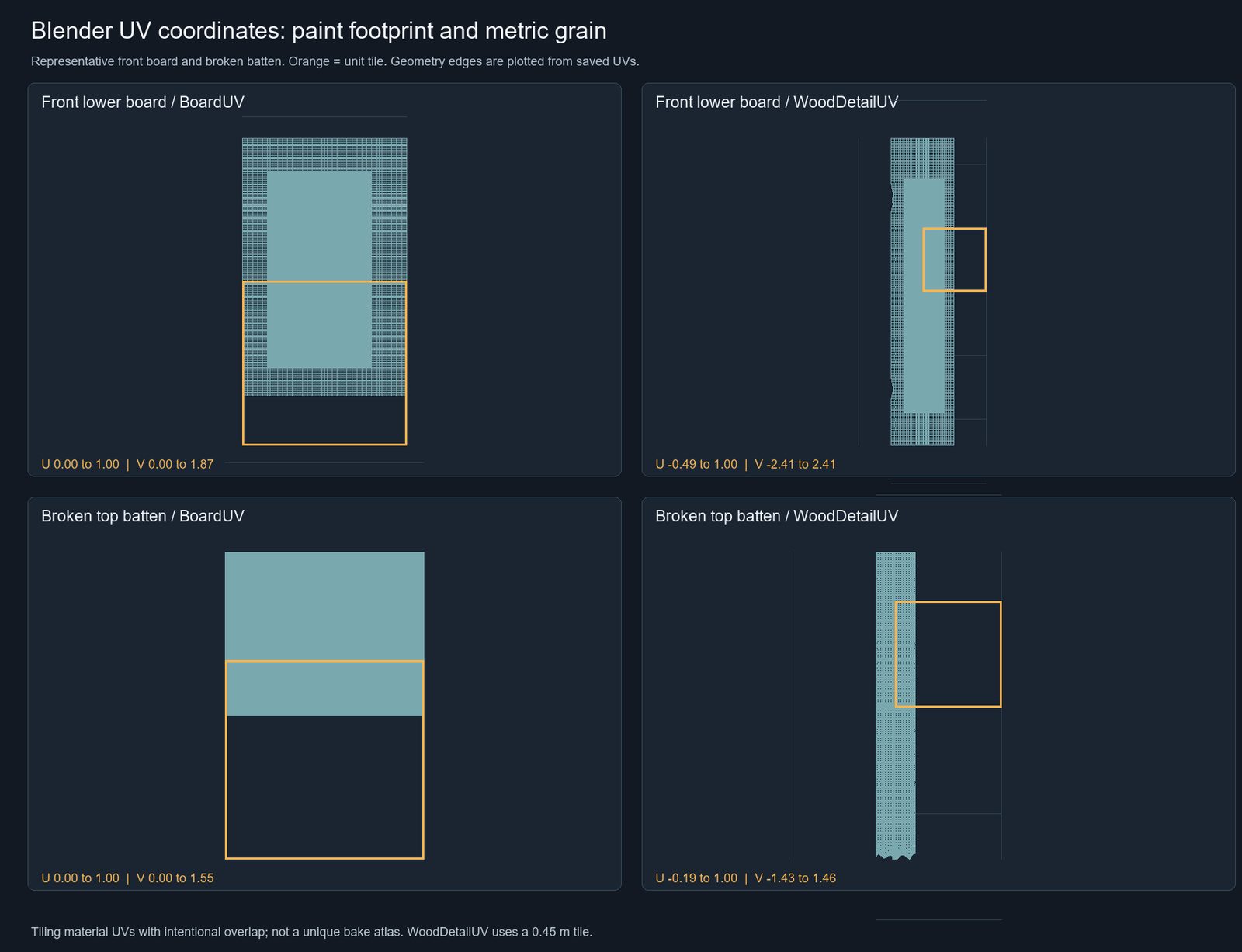

Actual coordinate plots for both UV layers on the lower front plank and fractured batten
Actual UV coordinates. Source image 1800×1380; the web copy is resized to 1600 px wide.

Verification and boundaries

Check records; each row distinguishes historical measurements from this review.
CheckResultObservations and supporting evidence
Source-image consistency (2026-10-01 curation)PassedSHA-256 hashes of 9 downloaded original images match the original manifest; web-copy hashes are recorded separately.
Reopening after saving (historical record)Passedsource-validation records Blender reopened=true; both the 37-node wood graph and 35-node steel graph were reopened and natively recomputed.
Packing and color spaces (historical record)Passed13 packed images; recorded material texture slots have packed_bytes_match_export=true, with sRGB for color / Non-Color for data.
Ground contact (historical record)PassedAll four feet have gap=0.0 m; the crate bounding box is approximately 2.252 × 1.527 × 1.138 m.
Original asset-production MCP traceFailedThe public package does not include complete tools/call logs, parameters or adapter/core versions; no records were fabricated in this round.
Static source-package audit (2026-10-01 curation)PassedThe archive was fully extracted in this round, and byte counts and hashes were checked for all 37 members. Originals were unchanged, and an offline path/credential audit found no issues. ZIP 151.4 MiB; see downloads.json for the full SHA-256. Blender / Designer projects were not reopened, recomputed or rerendered in this round.
This pass’s six-second finished-film targetFailedUnmet. Of 144 planned frames, only 55 wide frames completed before repeated host exits ended rendering.
Full-film final-quality acceptancenot_runAcceptance conditions are unmet; the 2.083-second stage excerpt cannot replace the complete film.
New native save/reopen and recipePassedBoth scenes actually reopened with 187 objects, 179 meshes and 7 materials. The public recipe was exercised; sampled camera matrices match production with zero difference, and render settings agree.
Geometry-only GLB export/reimportPassed179 meshes exported and imported into an empty scene; two sampled board bounds match with zero difference. No materials or animation were exported.
Partial-excerpt complete decodePassed50 frames fully decoded at 960×540, 24 fps and 2.083333 seconds, with no audio stream. All 55 locally retained native frames have distinct RGB hashes.

Evidence limits

  • This pass delivers only a 50-frame stage excerpt, not a high-quality finished film. Source scenes and the 55-frame checkpoint are retained. Host-exit causes are unestablished; quality reduction, interpolation and repeated still holds were not used to fill the missing duration.
  • The 2026-10-01 curation did not reproduce the work in a DCC. The 2026-10-12 pass actually reopened the source and attempted camera animation, without rebuilding the original model, Designer graphs or SBS materials. The film target remains incomplete.
  • The original prompt, complete MCP tool-call logs and adapter/core versions are not public.
  • The historical reference image was produced through Codex image generation. It is a reference input, not a deliverable made through DCC-MCP.
  • Dimensions, weathering and damage are artistic estimates; edge wear comes from the Designer board distribution, not a curvature bake.
  • This is a dense lookdev scene with tiling/overlapping UVs, not game-ready topology or a unique baked atlas.
  • The source records claim only that files can be reopened and recomputed, not that recomputed PNG bytes are identical.
  • The source repository declares MIT for the repository as a whole; no separate licenses are listed for the artwork, generated reference image or materials. Adobe built-in library assets are referenced only through sbs:// and are not distributed on this site.
  • The public excerpt uses original frames 1–50; extra checkpoint frames 51–55 use two OIDN threads. Same-frame calibration differs by at most 2/255 per channel, is not pixel-identical, and does not prove reduced peak memory. The old ZIP remains historical; the new cameras are rebuilt from the pinned input and recipe.

Last reviewed: 2026-10-12

Project files

Choose a project, reproduction package or exported resource. Before use, review this case's software versions, dependencies, format boundaries and rights.

Resources and rights

Source:Source and code
Source commit:38623dd51721a958b8dc5d2e8957e991908333ac

Author:Long Hao / loonghao · DCC-MCP
License scope: Source repository: MIT; no separate licenses listed for artwork and assets
The source author and complete MIT notice are retained. The reference image originated from Codex image generation; Adobe Substance 3D Designer is third-party software, and its standard library is referenced only, not distributed. Current images are web-derived copies of the originally published results.
