Mechanical Iris

3ds Max · Editable native geometry and guided denoise comparisons

3ds MaxBlenderdcc-media-enhanceNoicedcc-cuaModelingAnimationRenderingPost-productionVerification

Creative goal

Retain editable native geometry, compare denoisers with retained real guide channels, and distinguish SDK, UI and transport evidence.

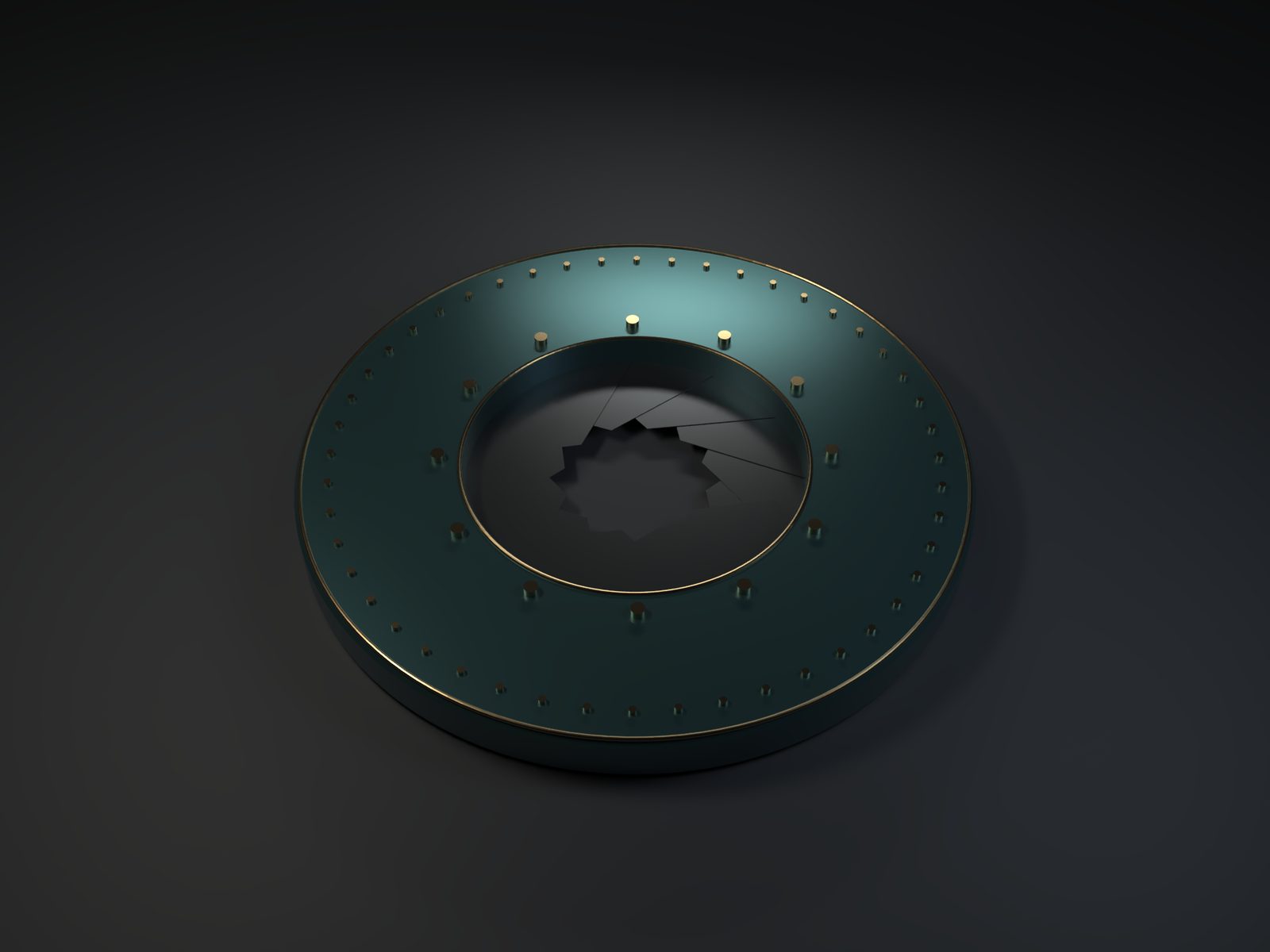

Twelve blades, twelve pivot caps and 48 distinct fasteners form a 440 × 440 × 34 mm mechanical iris. Native renders, real Max UI captures and RAW / Skill OIDN / Noice comparisons are available; the short interval does not replace a complete animation.

Models and versions

Production, post-production and review are attributed separately. Unknown means records are insufficient; it does not mean the current model produced the work.

Planning: Unknown · Reasoning effort:Unknown
No independently verifiable historical model or reasoning configuration record was retained; attribution remains unknown.
Native geometry, denoise comparisons and limited UI review; not model identity attestation.
Production: Unknown · Reasoning effort:Unknown
No independently verifiable historical model or reasoning configuration record was retained; attribution remains unknown.
Native geometry, denoise comparisons and limited UI review; not model identity attestation.
Code: Unknown · Reasoning effort:Unknown
No independently verifiable historical model or reasoning configuration record was retained; attribution remains unknown.
Native geometry, denoise comparisons and limited UI review; not model identity attestation.
Reference: Unknown · Reasoning effort:Unknown
No independently verifiable historical model or reasoning configuration record was retained; attribution remains unknown.
Native geometry, denoise comparisons and limited UI review; not model identity attestation.
Media processing: Unknown · Reasoning effort:Unknown
No independently verifiable historical model or reasoning configuration record was retained; attribution remains unknown.
Native geometry, denoise comparisons and limited UI review; not model identity attestation.
Visual review: Unknown · Reasoning effort:Unknown
No independently verifiable historical model or reasoning configuration record was retained; attribution remains unknown.
Native geometry, denoise comparisons and limited UI review; not model identity attestation.
Technical review: Unknown · Reasoning effort:Unknown
No independently verifiable historical model or reasoning configuration record was retained; attribution remains unknown.
Native geometry, denoise comparisons and limited UI review; not model identity attestation.

Version history

Limited evidence publication · 2026-10-26
Added to the visible case catalog; full-film and reversal review are deferred at the user’s direction and remain untested, alongside installation, transport and wireframe gaps. Publication does not mean acceptance of every stage.

English translation. Read the original Chinese text. Source evidence, downloads and native artwork retain their original language.

Prompt

Reusable prompt template

Create an original mechanical iris, save and reopen the native project, and check FBX reimport and sampled animation matrices. Retain linear EXRs and real guide channels, invoke OIDN through the canonical Core Skill and run Noice independently. Capture real UI through DCC-CUA and record verified results separately from unfinished stages.

Reusable instructions derived from the actual process, not the user’s verbatim wording; the adapted recipe has not been rerun from a blank scene.

Software and tools

3ds Max: 3ds Max 2024.2.14 / Python 3.10.14
Adapter source candidate: dcc-mcp-3dsmax 0.2.18 source candidate / e1b724483193dd6476d117cb7ecf15ccaab91422
Core / Server runtime packages: dcc-mcp-core 0.20.45 / dcc-mcp-server 0.20.45
dcc-media-enhance: 0.2.0 source candidate / f7073694ea2abef5c5b94f36e1442be076c9bb75
Blender: Blender 5.1.1 compositor OIDN; embedded OIDN version was not independently recorded and remains unknown
Noice: MAXtoA Arnold Noice 7.2.4.1
dcc-cua: 1.12.2
Actual camera and media: 45° FOV; 1920 × 1440 AA3 hero; 960 × 720 frames 48–55; 24 fps

3ds Max DCC-MCP
Native adapter handlers authored geometry and checked save/reopen, FBX and sampled matrices; this does not establish MCP transport or normal-install acceptance.
dcc-media-enhance Core Skill / OIDN
The canonical in-process Python Core Skill uses actual beauty, normal and albedo channels; this verifies orchestration and the real backend, not a new denoising algorithm.
Autodesk Noice
An independently executed native denoise reference with the same source inputs and display conversion as OIDN.
dcc-cua
Bound the task-owned native window and captured the scene and state after one background UIA Modify-tab action.

Refer to project documentation for installation, compatibility and current capabilities. This case's actual environment and execution evidence are recorded above.

Step-by-step process

Native geometry and reopen
84 objects and 48 distinct fasteners; maximum matrix delta was zero at five sampled frames after save/reopen and FBX reimport.
Real channels and algorithm comparison
Actual beauty, normal and albedo passthrough pixels match the source EXR within 1e-6. Original inputs are retained and OIDN and Noice execute separately.
Bounded UI interaction evidence
Background WGC capture and a UIA tab action passed. No object was selected; modifier parameters, wireframe and timeline operations remain unaccepted.

Models and evaluation records

Public examples, not a blind evaluation set or leaderboard. Missing values stay unrecorded and are not averaged or ranked.

No runs under a shared protocol are recorded yet; historical attribution remains in the existing stage-specific records.

Exact model version: Not recorded
Run hardware: Not recorded
Seed / attempt: Not recorded
Wall time / tool calls: Not recorded

View original checks and limits · Machine-readable records · Comparison protocol

Model preview is not enabled: eligible assets and complete ecosystem evidence are still required.

Results

Frames 48–55 at 24 fps, only one-third of a second and intentionally silent; complete decoding is not acceptance of actual natural-speed playback.

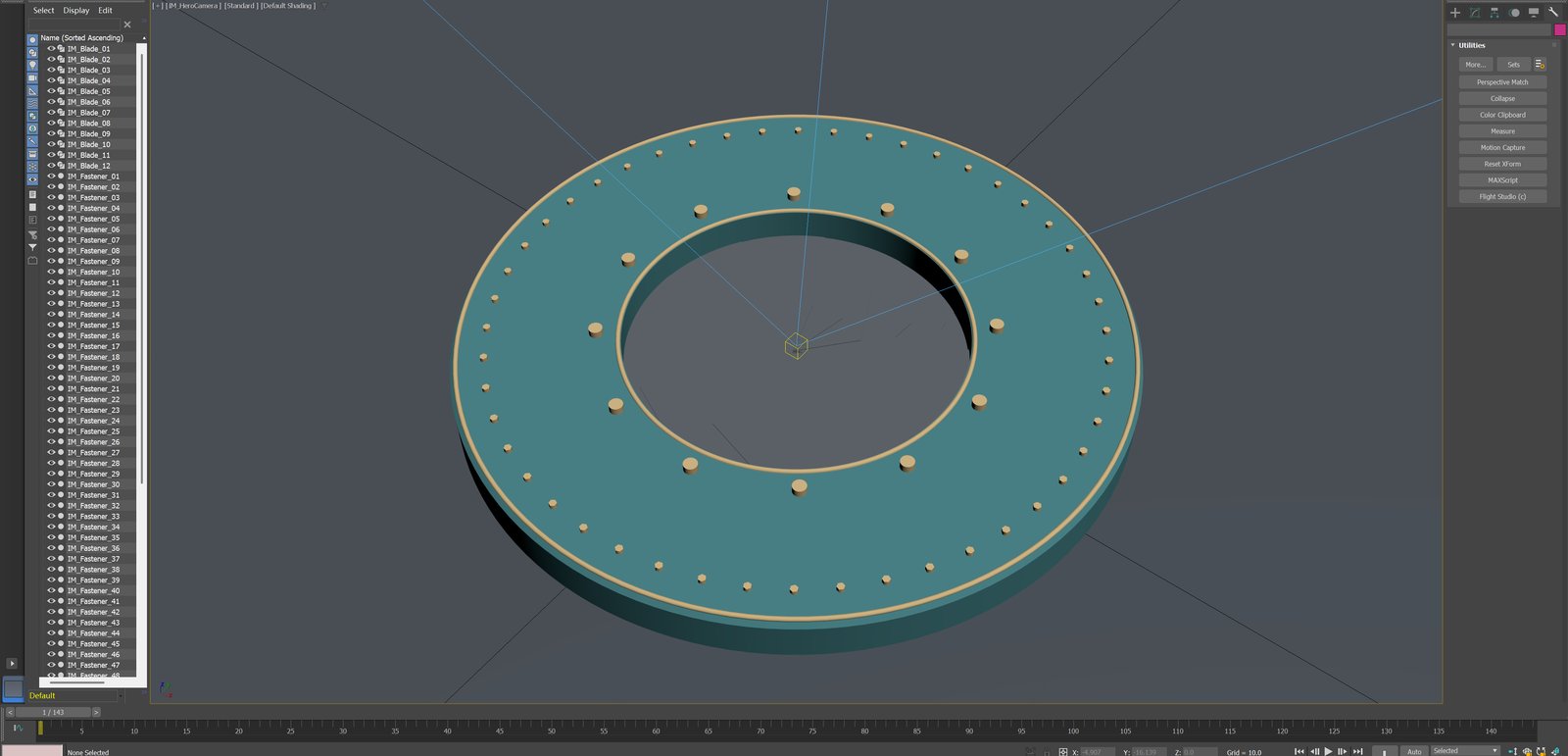

Actual Max camera viewport, Scene Explorer and command panel — A real DCC-CUA target-window capture; only the top private-path toolbar and bottom status strip were cropped, then resized and encoded, without repainting or compositing.

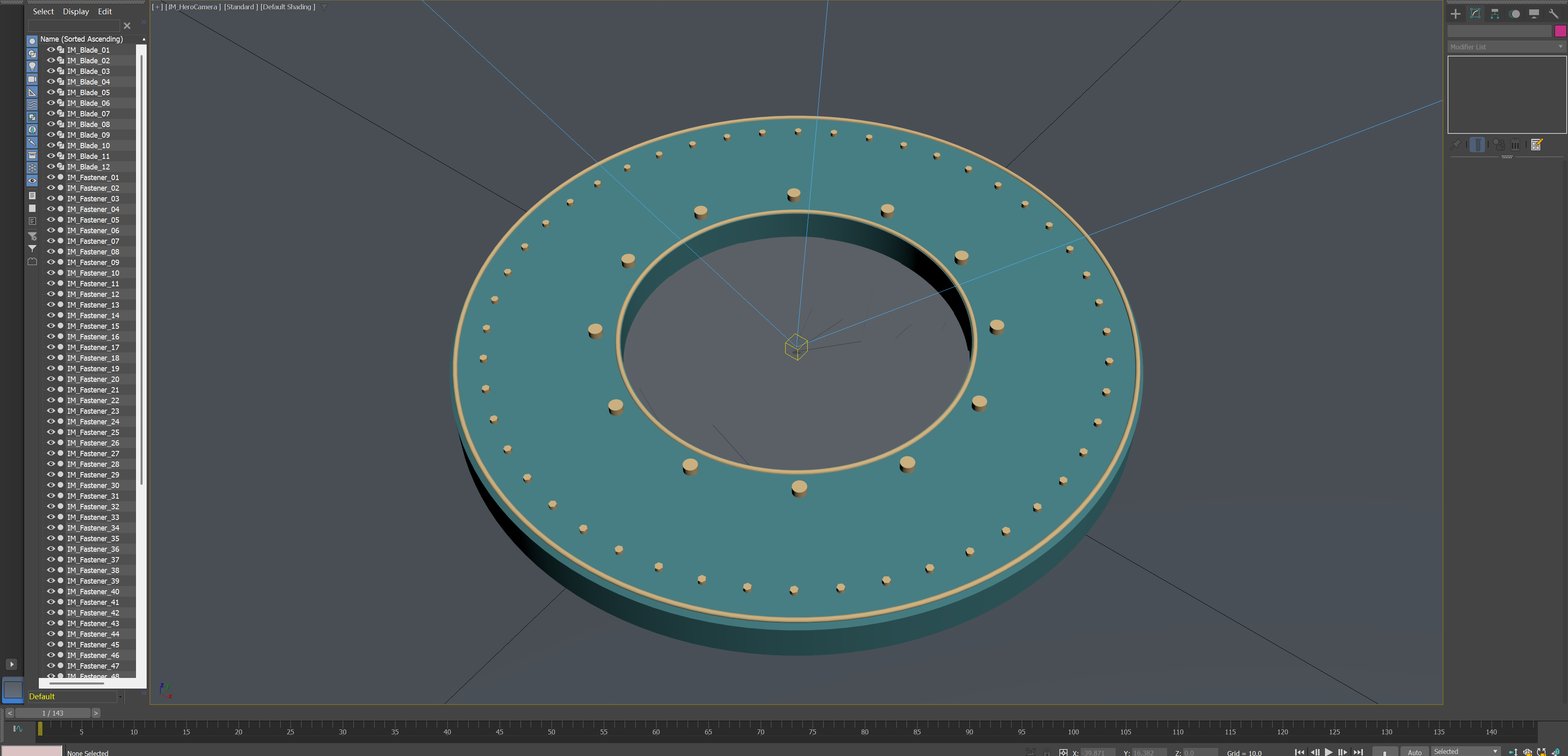

Native Modify tab after a background UIA action — Actual post-action capture of a background tab operation; no object is selected, so it does not verify modifier-stack parameters.

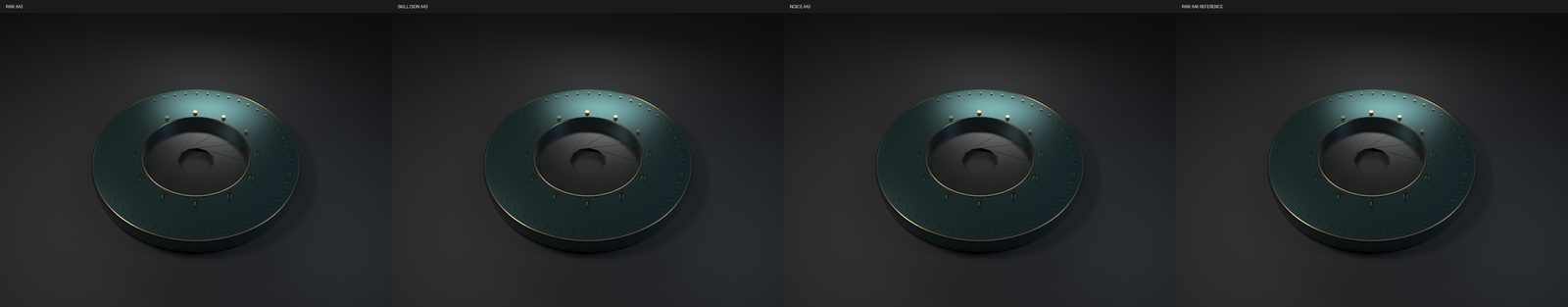

Same-frame comparison of AA3 and higher-sample AA6 — AA6 is a higher-sample observation rather than ground truth; it does not establish a universal algorithm ranking.

Verification and boundaries

Check records; each row distinguishes historical measurements from this review.
Check	Result	Observations and supporting evidence
Native geometry and transfer	Passed	Native reopen and FBX samples of 84 objects at frames 1/24/72/96/144 have zero matrix delta.
Real guides and completed manifests	Passed	Beauty, normal and albedo pixel comparisons are within 1e-6; canonical Skill completion records and original input hashes are retained.
Actual Max UI	Passed	Two real captures and one background UIA tab action passed; an earlier foreground-activation refusal is retained separately.
Full-film and reversal review	not_run	Only an eight-frame interval was completed; production of the complete 144-frame film was deferred at the user’s direction.
Installation, transport and wireframe	not_run	This case does not establish normal MZP installation, MCP transport, wireframe or modifier-parameter UI acceptance.

Evidence limits

This is a public case with limited verification; it does not claim full-film, reversal, actual natural-speed playback or mechanical collision acceptance.
Reused frame 48 and frames 49–55 use different sampling patterns, so the boundary cannot isolate denoiser flicker.
The native project and FBX remain private; a sanitized public copy and independent blank-scene rebuild are unfinished. The actual camera uses a 45° FOV.
The adapter and media tool are identified source candidates; source CI, UI captures and an in-process Skill do not establish release, installation or transport acceptance.

Last reviewed: 2026-10-26

Resources and rights

Source:Source and code
Source commit:e1b724483193dd6476d117cb7ecf15ccaab91422

Author：DCC-MCP showcase contributors
License scope: Original geometry and media retain their existing rights; Autodesk, Blender and OIDN licenses remain unchanged.
No external models, image textures, music or AI bitmaps; actual host outputs and UI captures are identified separately.
