Olive-Green Aged-Paint Wood

From a generated reference to an editable procedural surface

The actual Designer interface showing the aged-paint wood node graph, 2D output and rounded-cube preview together
The actual Designer interface showing the aged-paint wood node graph, 2D output and rounded-cube preview together
Substance 3D DesignerProcedural materialsParameter controlsPBR exportColor correction

Creative goal

Use the surface of an existing generated crate reference as the visual target for a procedural aged-paint wood material without baking reference-image pixels into it. Retain adjustable paint coverage, bare-wood color, wood-grain height and roughness, and export native PBR channels for use in other rendering applications.

19 authoring nodes turn wood fibers, bare-wood colors and peeling paint into an editable PBR material. Before-and-after images document color correction, paint_coverage is exposed as a parameter, and the five native output types retain explicit bit depths and color interpretations.

Models and versions

Production, post-production and review are attributed separately. Unknown means records are insufficient; it does not mean the current model produced the work.

Planning and art direction
Unknown · Reasoning effort:Unknown

Existing production records do not identify the specific model or reasoning effort; historical gaps are not filled using the current default model or this review.
Original work; published authorship, software versions and production evidence are retained.

Original asset creation / DCC operations
Unknown · Reasoning effort:Unknown

Existing production records do not identify the specific model or reasoning effort; historical gaps are not filled using the current default model or this review.
Original work; published authorship, software versions and production evidence are retained.

Tool and code implementation
Unknown · Reasoning effort:Unknown

Existing production records do not identify the specific model or reasoning effort; historical gaps are not filled using the current default model or this review.
Original work; published authorship, software versions and production evidence are retained.

Original post-production
Unknown · Reasoning effort:Unknown

Existing production records do not identify the specific model or reasoning effort; historical gaps are not filled using the current default model or this review.
Original work; published authorship, software versions and production evidence are retained.

Reference-image generation / input
Unknown · Reasoning effort:Unknown

The source records mention a Codex image-generated reference but do not record the specific model or effort; the reference image is not treated as a DCC deliverable.
Reference inputs and native DCC results are recorded separately.

Independent visual review
Unknown · Reasoning effort:Unknown

An existing review report states its model and effort, but the accepted configuration receipt from that time has not been verified; both fields remain unknown.
On 2026-10-07, the published images were actually viewed to assess composition, materials and readability; the work was neither rerendered nor modified.

Independent technical review
Unknown · Reasoning effort:Unknown

An existing review report states its model and effort, but the accepted configuration receipt from that time has not been verified; both fields remain unknown.
On 2026-10-07, public pages, downloads, hashes, archives and native file structures were checked; DCC applications were not rerun, and interactive editing was not acceptance-tested.

Attribution and site-publication review for this revision
Unknown · Reasoning effort:Unknown

The original task record self-reported gpt-6-astra / ultra, but the original accepted-configuration receipt was not exported and cannot currently be verified. The model and reasoning effort therefore remain unknown. This self-reported history is only a lead for future verification, not backend identity attestation or retrospective attribution of the original production or earlier artistic review.
On 2026-10-07, reviewed attribution fields, validation code and desktop/mobile page screenshots for the final version of PR #17, head bfa80ead316eb182863ffb5d6f48b71f1c87c766. Did not rerun DCC applications, create the original assets or repeat artistic-quality acceptance.

Version history

  • Documentation revision 2026-10-07 ·

    Added stage-specific model names, reasoning effort and independent-review scope. Historical unknowns remain unknown; image, film and native-project bytes are unchanged, and this does not count as a new case.

  • Added publication-review attribution record ·

    Added the configured model and reasoning effort for this attribution and site-publication review, noting that the original configuration receipt was not exported. This does not rewrite the original production or earlier review records; artwork bytes are unchanged.

  • Corrected publication-review attribution evidence status ·

    Retained the original task's self-reported configuration and review scope as historical leads. Because the original accepted-configuration record could not be verified, the corresponding model, reasoning effort and record status were corrected to unknown. Existing revisions, assets and score evidence are preserved; structural validation does not establish verified attribution.

English translation. Read the original Chinese text. Source evidence, downloads and native artwork retain their original language.

Prompt

Reusable prompt template
Use DCC-MCP to create editable olive-green aged-paint wood in Substance 3D Designer 16. Use the existing crate reference only to observe color and wear; do not bake reference-image pixels into the material. Build wood grain with Wood Fibers 1 and blend two bare-wood colors. Use Grunge Leaky Paint and Levels to create a peeling-paint mask that also drives roughness, Height and Normal, while keeping Metallic at zero. Expose the paint_coverage parameter and save it as 0.70. Correct paint RGB from 87/89/62 to 99/96/74, and correct bare-wood endpoints to 0.35/0.29/0.215 and 0.69/0.60/0.46. Natively export 1024×1024 Base Color, Height, Normal, Roughness and Metallic textures, save SBS and SBSAR files, capture the complete node graph and live material preview, and record file hashes and actual tool calls. Report capability gaps without bypassing them through direct application scripts.

The original conversation prompt is not public. This text was adapted from the public steps for future reproduction; it is not verbatim and was not executed in this round. The original reference was produced through Codex image generation, while the material graph was made using the live DCC-MCP workflow stated in the source report.

Software and tools

Material software
Substance 3D Designer 16.0.0
Authored graph
crate_painted_wood · 19 nodes
Outputs
1024 × 1024 · 5 PBR channels
Color workflow
Designer legacy · Native export without an additional gamma transform
Graph screenshots
DCC-CUA 1.8.2
Adapter / Core
Not publicly recorded (unrecorded)
  • DCC-MCP / Designer (source report)

    The source README and manifest state that the material was authored and exported through DCC-MCP in a live Designer graph. Complete tool names, call parameters and traces are not public.

  • DCC-CUA 1.8.2

    The original public manifest records the screenshot provider; the complete node graph and live session retain 2D output and preview information.

Refer to project documentation for installation, compatibility and current capabilities. This case's actual environment and execution evidence are recorded above.

Step-by-step process

  1. Break the reference down into surface features

    Observe wood fibers, bare wood and olive-green peeling paint in the historically generated reference. The reference supports artistic estimates and is not directly baked into textures. This case creates only a material; crate geometry and UVs were not reconstructed.

    Historical Codex-generated crate reference
    Historical Codex-generated crate reference
  2. Build the 19-node material graph

    Wood Fibers 1 drives the blend between two wood colors; Grunge Leaky Paint and Levels control paint coverage. The wear mask also affects Roughness, wood grain and paint-layer relief affect Height and Normal, and Metallic is zero.

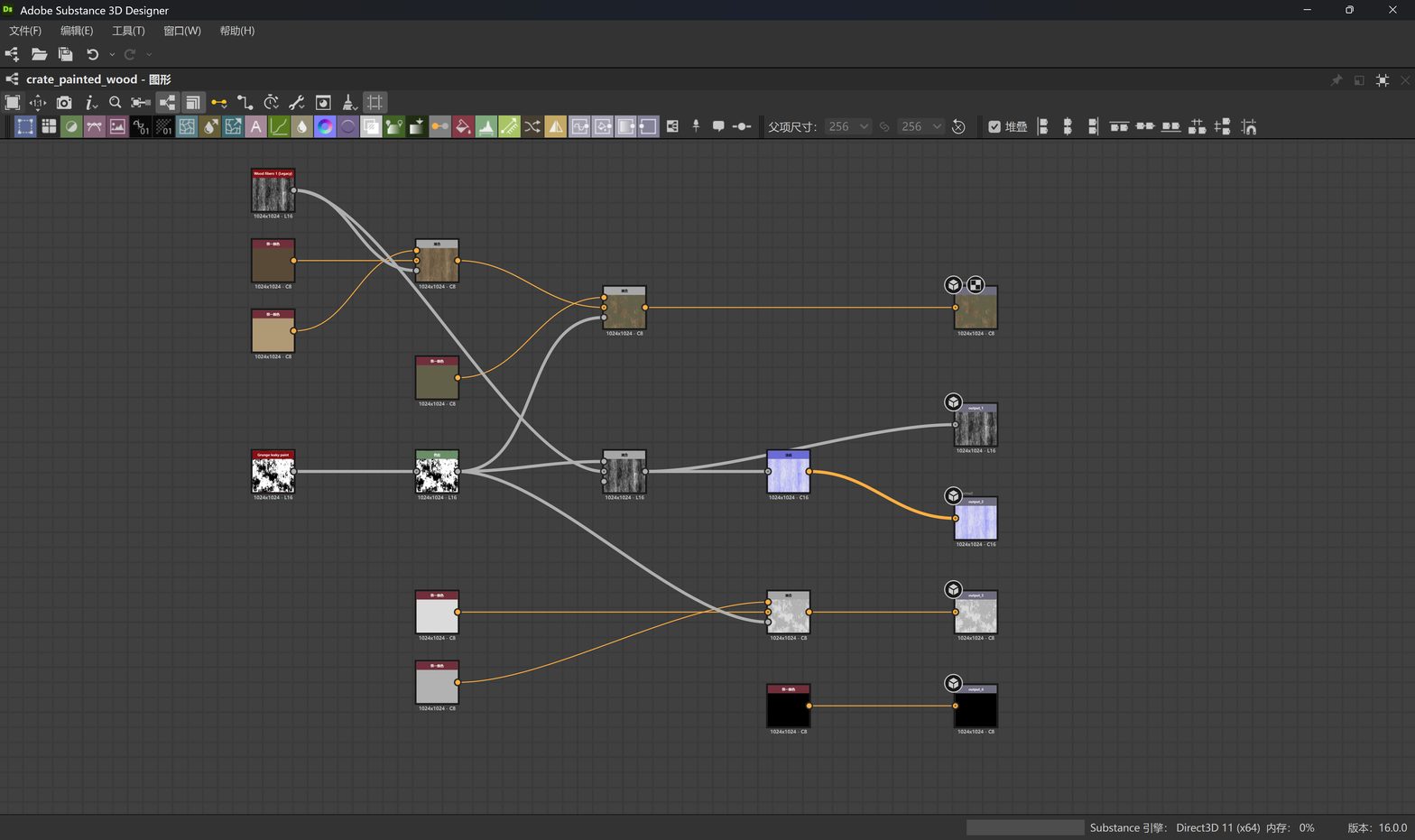

    Complete connection graph of all 19 authoring nodes
    Complete connection graph of all 19 authoring nodes
  3. Correct overly green and yellow colors

    The source report records a paint RGB change from 87/89/62 to 99/96/74; bare-wood endpoints changed from a yellow-biased combination to the more neutral 0.35/0.29/0.215 and 0.69/0.60/0.46. Colors are artistic estimates from a lit reference.

    Aged-paint wood Base Color before color correction
    Aged-paint wood Base Color before color correction
  4. Expose paint coverage and preview live

    paint_coverage connects to the paint generator's balance through a parameter function and is saved as 0.70. Designer's rounded cube is only a material preview, not the final crate model.

    Live graph, texture and rounded-cube preview in Designer
    Live graph, texture and rounded-cube preview in Designer
  5. Export native PBR and editable sources

    All five PBR channels are 1024×1024. Base Color is RGB8, Height is Gray16, Normal is RGBA16, and Roughness and Metallic are RGB8. Use sRGB for color and raw/non-color for data to avoid a second gamma transform.

    Aged-paint wood Base Color after correction
    Aged-paint wood Base Color after correction

Models and evaluation records

Public examples, not a blind evaluation set or leaderboard. Missing values stay unrecorded and are not averaged or ranked.

No runs under a shared protocol are recorded yet; historical attribution remains in the existing stage-specific records.

Exact model version
Not recorded
Run hardware
Not recorded
Seed / attempt
Not recorded
Wall time / tool calls
Not recorded

View original checks and limits · Machine-readable records · Comparison protocol

Model preview is not enabled: eligible assets and complete ecosystem evidence are still required.

Results

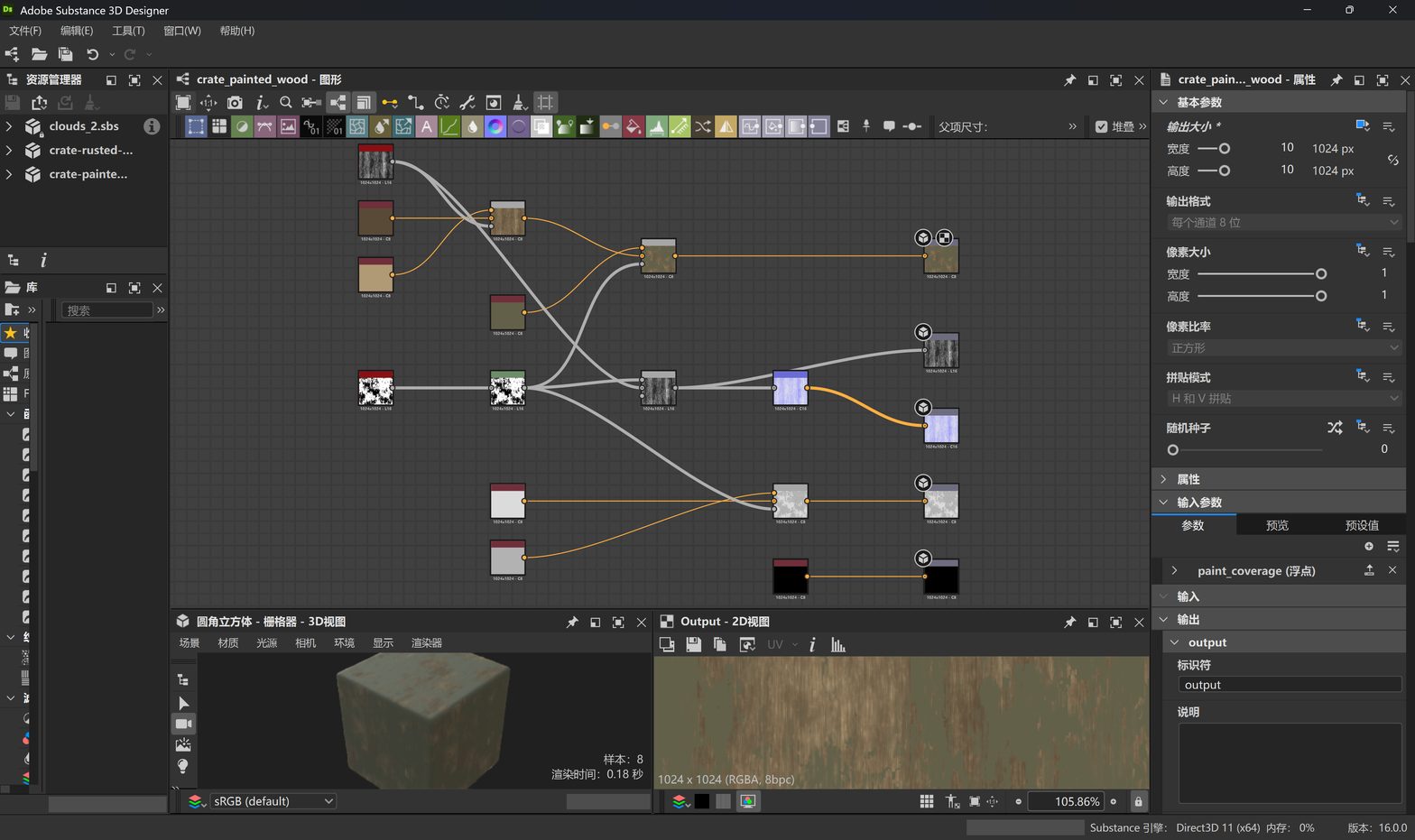

Live Designer preview
The published actual Designer session: 19-node graph, 2D texture and rounded-cube material preview.

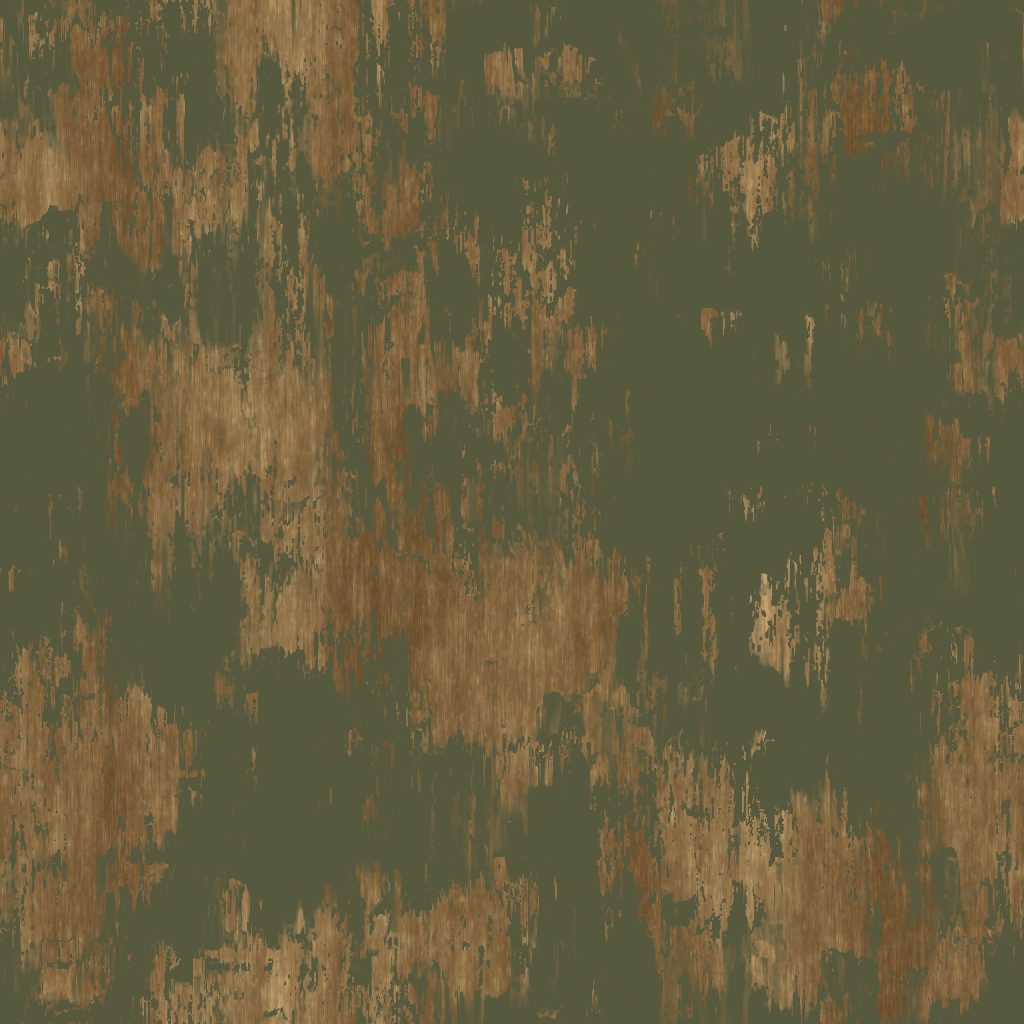

Base Color before color correction
Before correction: green-biased paint and yellow-biased bare wood.

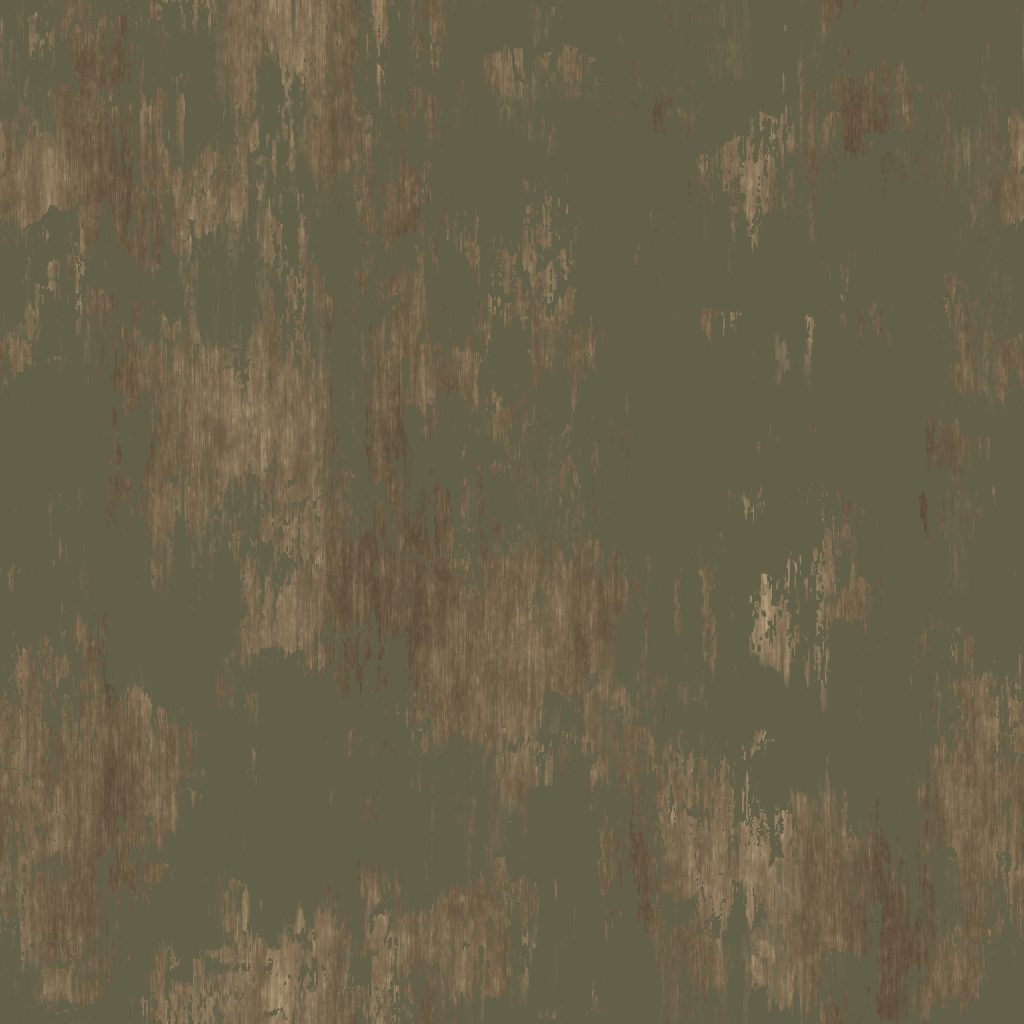

Base Color after color correction
