Creative goal

Turn parametric CAD components into an original miniature world with a clearly readable loading action, while retaining editable projects, reproducible recipes and evidence of actual application calls.

A 600-millimeter track gauge, 112 sleepers and 148 native objects form a miniature quarry. The locomotive stops, a mineral crystal drops into a freight wagon, the hook retracts, and the train departs through a stone gantry.

Models and versions

Production, post-production and review are attributed separately. Unknown means records are insufficient; it does not mean the current model produced the work.

Planning and art direction
Unknown · Reasoning effort:Unknown

Existing production records do not identify the specific model or reasoning effort; historical gaps are not filled using the current default model or this review.
Original work; published authorship, software versions and production evidence are retained.

Original asset creation / DCC operations
Unknown · Reasoning effort:Unknown

Existing production records do not identify the specific model or reasoning effort; historical gaps are not filled using the current default model or this review.
Original work; published authorship, software versions and production evidence are retained.

Tool and code implementation
Unknown · Reasoning effort:Unknown

Existing production records do not identify the specific model or reasoning effort; historical gaps are not filled using the current default model or this review.
Original work; published authorship, software versions and production evidence are retained.

Original post-production
Unknown · Reasoning effort:Unknown

Existing production records do not identify the specific model or reasoning effort; historical gaps are not filled using the current default model or this review.
Original work; published authorship, software versions and production evidence are retained.

Reference-image generation / input
Unknown · Reasoning effort:Unknown

The existing public workflow records no image-generation step; no image model is inferred from the software or imagery.
Reference inputs and native DCC results are recorded separately.

Independent visual review
Unknown · Reasoning effort:Unknown

An existing review report states its model and effort, but the accepted configuration receipt from that time has not been verified; both fields remain unknown.
On 2026-10-07, the published images and film samples were actually viewed to assess composition, materials and readability; the work was neither rerendered nor modified.

Independent technical review
Unknown · Reasoning effort:Unknown

An existing review report states its model and effort, but the accepted configuration receipt from that time has not been verified; both fields remain unknown.
On 2026-10-07, public pages, downloads, hashes, archives and native file structures were checked; DCC applications were not rerun, and interactive editing was not acceptance-tested.

Attribution and site-publication review for this revision
Unknown · Reasoning effort:Unknown

The original task record self-reported gpt-6-astra / ultra, but the original accepted-configuration receipt was not exported and cannot currently be verified. The model and reasoning effort therefore remain unknown. This self-reported history is only a lead for future verification, not backend identity attestation or retrospective attribution of the original production or earlier artistic review.
On 2026-10-07, reviewed attribution fields, validation code and desktop/mobile page screenshots for the final version of PR #17, head bfa80ead316eb182863ffb5d6f48b71f1c87c766. Did not rerun DCC applications, create the original assets or repeat artistic-quality acceptance.

Version history

  • Documentation revision 2026-10-07 ·

    Added stage-specific model names, reasoning effort and independent-review scope. Historical unknowns remain unknown; image, film and native-project bytes are unchanged, and this does not count as a new case.

  • Added publication-review attribution record ·

    Added the configured model and reasoning effort for this attribution and site-publication review, noting that the original configuration receipt was not exported. This does not rewrite the original production or earlier review records; artwork bytes are unchanged.

  • Separately added MIDI-score version ·

    An actual REAPER MIDI/ReaSynth score and sound effects were produced to this film's timing; the original silent version and all visual/original-project licenses remain unchanged.

  • Corrected publication-review attribution evidence status ·

    Retained the original task's self-reported configuration and review scope as historical leads. Because the original accepted-configuration record could not be verified, the corresponding model, reasoning effort and record status were corrected to unknown. Existing revisions, assets and score evidence are preserved; structural validation does not establish verified attribution.

English translation. Read the original Chinese text. Source evidence, downloads and native artwork retain their original language.

Prompt

Reusable prompt template
Use real typed DCC-MCP to create an original narrow-gauge mining miniature. First write a self-contained parametric source in OpenSCAD and export the rails, sleepers and trestle. Map millimeters to Blender by dividing by 1000, then verify vertices and topology. Create a low-poly rock island, mineral crystals, locomotive, two freight wagons and a crane, using native keyframes at 12fps to show arrival, loading and departure. Set the final arc-length spacing between freight wagons to 2.4m, and check wheel/rail contact, connecting rods, cargo landing positions and gantry clearance. Build a 24fps, 20-second editable timeline in Kdenlive, holding each action image for two frames. Actually reopen and render after migrating the projects, comparing the original renders and every frame of the film. Retain failed approaches, licenses and complete call records.

Reusable instructions organized from the actual production workflow, not a verbatim transcript of the original user request.

Software and tools

OpenSCAD
2021.01; 0.3.0 baseline and a separate local source-writing enhancement
Blender
4.3.2; compatible with the 0.1.43 adapter and documented local patches; Cycles CPU limited to 4 threads
Kdenlive / MLT
24.12.3 / MLT 7.30.0; qimage, relative root paths and native text-effect identifiers corrected and accepted
Adapter
Historical baselines: OpenSCAD 0.3.0, Blender 0.1.43 and Kdenlive 0.1.1. See validation.json for corrected development-source hashes; no software is released in this batch
Core / SDK
Original production: Core 0.20.39 / SDK 2.2.0; corrected acceptance: Core 0.20.41. See validation.json for exact source hashes
Added soundtrack / REAPER
REAPER 7.82 / stock ReaSynth;Core 0.20.41,CLI/server 0.20.42,adapter commit 867ce6837c916aa7ca89a5cb14deae9869f09d00
  • write_model_source / compile_model / export_model

    Write and export editable parametric SCAD source through bounded real MCP tools, and verify track-gauge variants.

  • create_mesh_from_data / native material and animation tools

    Bring actual OFF vertices and faces into Blender, then natively build materials, lighting and keyframes for the locomotive and crane.

  • render_scene / save_portable_scene_copy

    Output 120 native action images and high-sample stills; use native RNA operations to clear path buffers before migration acceptance.

  • add_media / insert_clip / add_effect / package_project / render_project

    Create the timeline, text, relative-media package and native MLT film through actual Kdenlive MCP calls.

  • reaper_film_score__compose_score / render_score / audit_score

    Additional typed skill: a fixed original note recipe, an actual MIDI project and stock ReaSynth, with native rendering to the picture duration, saving and reopening.

Refer to project documentation for installation, compatibility and current capabilities. This case's actual environment and execution evidence are recorded above.

Step-by-step process

  1. Bring parametric track into the native scene

    Three OFF components contain a total of 4423 vertices and 8598 faces; scaled float32 coordinates and topology hashes are fully preserved.

  2. Loading action and mechanical contact

    Final wagon spacing is 2.4m; the maximum gap across 70 native wheel/rail observations is 0.713mm, with sampled gantry clearance of 106.0mm.

    Details of the loaded mineral crystal, wagon wheel assemblies, crane and trestle supports
    Details of the loaded mineral crystal, wagon wheel assemblies, crane and trestle supports
  3. An editable 20-second film

    120 action images at 12fps each occupy two frames, forming a 24fps timeline; the title, detail shots and ending retain editable structure.

  4. Migration and frame-by-frame checks

    Rerender the relative-media package with the original media and project unavailable; decoded hashes for all 480 frames match the original film.

  5. Add a native MIDI-score version

    83 editable MIDI notes synthesized by actual ReaSynth; separate procedural sound-effect sources and cues organized against the public film are retained. The original visuals and silent version are unchanged.

Models and evaluation records

Public examples, not a blind evaluation set or leaderboard. Missing values stay unrecorded and are not averaged or ranked.

No runs under a shared protocol are recorded yet; historical attribution remains in the existing stage-specific records.

Exact model version
Not recorded
Run hardware
Not recorded
Seed / attempt
Not recorded
Wall time / tool calls
Not recorded

View original checks and limits · Machine-readable records · Comparison protocol

Model preview is not enabled: eligible assets and complete ecosystem evidence are still required.

Results

Download video

Soundtrack added on 2026-10-09: 83 native MIDI notes, stock ReaSynth and original sound effects; 20.0 seconds. The original H.264 bitstream and every frame are fully preserved, and the original silent version remains below. Only the newly added standalone audio is CC0; visual rights are unchanged.
Crystal Freight native hero image
Native 1600×1200 JPEG at 384 samples; only path metadata was removed, with the compressed pixel payload and decoded pixels unchanged.
Loading-action detail
Native 1600×1200 detail at 256 samples, with the final 2.4m wagon spacing.

Download video

Native MLT output, 1280×960, 24fps, 480 frames total; the action source uses the explicitly declared 12fps cadence.

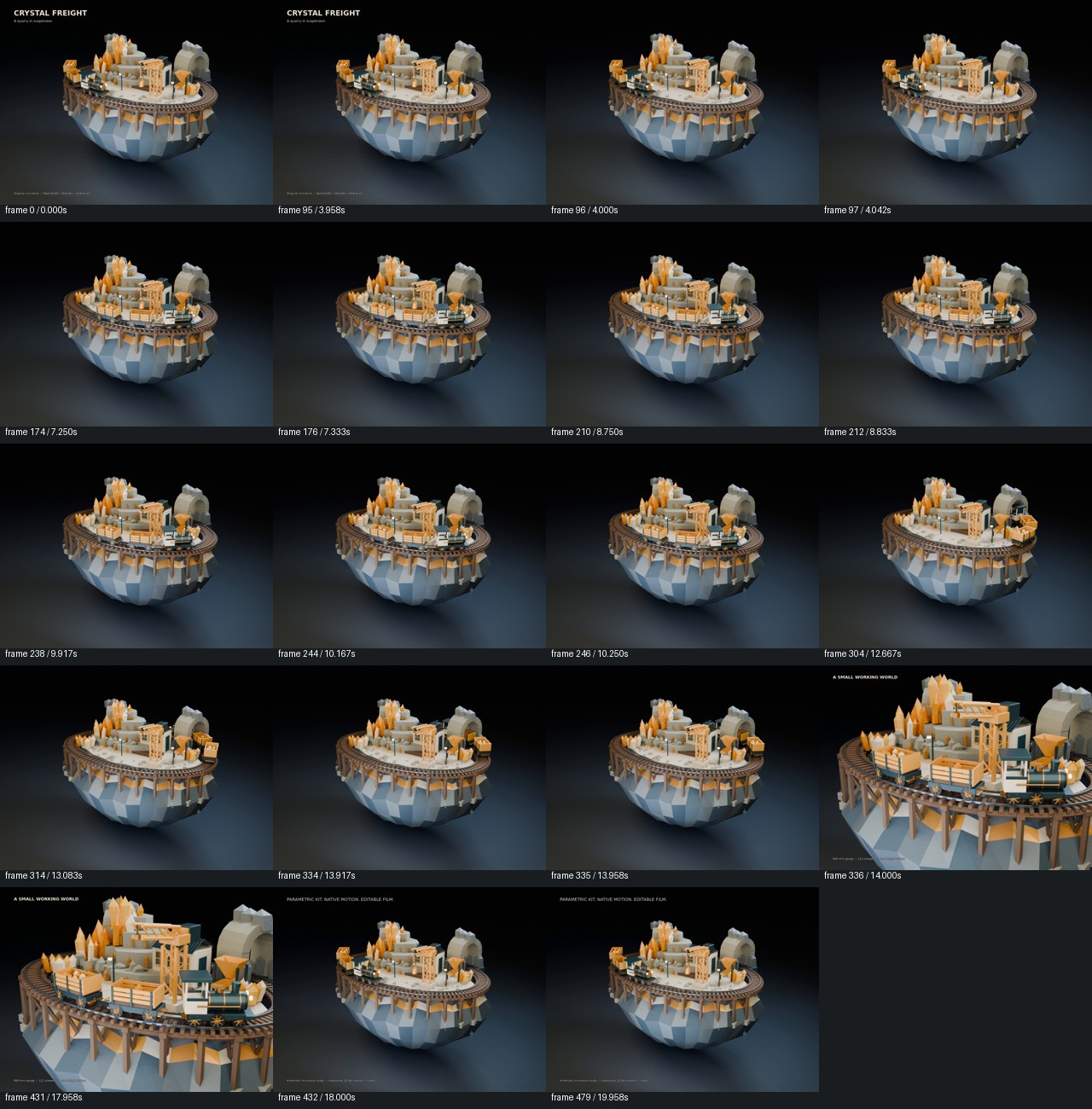

Acceptance contact sheet of actual film keyframes
Acceptance preview of 19 frames decoded and extracted from the delivered film; thumbnails and frame numbers are for QA.

Verification and boundaries

Check records; each row distinguishes historical measurements from this review.
CheckResultObservations and supporting evidence
OpenSCAD → Blender handoffPassedThree OFF parts preserve 4,423 vertices and 8,598 faces after the documented mm-to-metre conversion.
Native scene relocationPassedAll four final BLEND copies pass raw path-padding checks, native reopen, and exact decoded reference-image comparison.
Kdenlive relocationPassedEvery one of 480 decoded video-frame hashes matches while the original package and authorized source media are unavailable.
Native editor controls and untouched savePassedAll seven caption controls visible; untouched Save Copy and reopen verified; all 480 RGB/RGBA frames and MP4 bytes exact within one display environment. Parameter Undo not qualified.
Native cadence and soundPassed120 native action frames at 12 fps, 115 distinct images including holds. One AAC stream is present; all decoded PCM samples are zero.
Full native downloadPassedBoth v5 archives are publicly downloadable without login; the full 233,614,591-byte companion matches its declared SHA-256 and includes all 122 PNG dependencies.
Added soundtrack and visual preservationPassedActual REAPER saving, reopening and native rendering passed; MIDI notes=83. The H.264 stream hash and all decoded frames match the original film; AAC has no clipping and zero sample offset from the native soundtrack. No subjective listening review is recorded.

Evidence limits

  • This is an original kinematic miniature scene, not a railway-safety, structural-engineering or rigid-body/suspension/fluid simulation.
  • Only limited samples and integer keyframes were checked; no claim is made of continuous-time collision certification, a complete circuit or seamless looping.
  • 120 action images play at a 12fps cadence; no claim is made of 24fps independent motion frames or soundtrack design.
  • Early JPEG white-frame, gantry and projected-bounding-box failures are retained in the evidence; the final film uses verified PNG inputs.
  • The before/after development comparison rerenders an early geometry/material version at the final wagon spacing and camera pose, as explicitly labeled.
  • The final project passed acceptance for native controls, saving a copy with unchanged parameters and reopening. Parameter edits/parameter Undo and cross-environment pixel identity are outside this scope.
  • The compact package can open CAD/Blender independently; Kdenlive requires the 122 PNGs in the full package. The full package passed login-free download and SHA-256 verification.
  • Public evidence is a curated projection of actual tool calls; complete private logs, software runtimes and font files are not distributed with the package.
  • The added soundtrack does not mean that the original visual project was remade. No subjective listening review is recorded, and no integration verification with a private game project is included.
