BRASS RELAY · Brass Four-Bar Linkage

FreeCAD → Blender → Kdenlive · From parametric parts to verifiable mechanism motion

A perforated brass flywheel, dark red connecting rod and silver rocker form a complete four-bar mechanism on an ivory instrument base
A perforated brass flywheel, dark red connecting rod and silver rocker form a complete four-bar mechanism on an ivory instrument base
FreeCADBlenderKdenliveREAPERProcedural geometryMaterials and lightingAnimationCross-application productionVerificationAudioMIDI score

Creative goal

Use explicit geometric constraints to organize a refined mechanical demonstration, connecting parametric CAD, native scenes and an actual film into a reusable production pipeline.

The perforated brass flywheel rotates at a constant speed, driving the dark red connecting rod and silver rocker back and forth. Part dimensions, axial layering, hole and shaft positions, and native keyframes can all be inspected and edited further.

Models and versions

Production, post-production and review are attributed separately. Unknown means records are insufficient; it does not mean the current model produced the work.

Planning and art direction
Unknown · Reasoning effort:Unknown

Existing production records do not identify the specific model or reasoning effort; historical gaps are not filled using the current default model or this review.
Original work; published authorship, software versions and production evidence are retained.

Original asset creation / DCC operations
Unknown · Reasoning effort:Unknown

Existing production records do not identify the specific model or reasoning effort; historical gaps are not filled using the current default model or this review.
Original work; published authorship, software versions and production evidence are retained.

Tool and code implementation
Unknown · Reasoning effort:Unknown

Existing production records do not identify the specific model or reasoning effort; historical gaps are not filled using the current default model or this review.
Original work; published authorship, software versions and production evidence are retained.

Original post-production
Unknown · Reasoning effort:Unknown

Existing production records do not identify the specific model or reasoning effort; historical gaps are not filled using the current default model or this review.
Original work; published authorship, software versions and production evidence are retained.

Reference-image generation / input
Unknown · Reasoning effort:Unknown

The existing public workflow records no image-generation step; no image model is inferred from the software or imagery.
Reference inputs and native DCC results are recorded separately.

Independent visual review
Unknown · Reasoning effort:Unknown

An existing review report states its model and effort, but the accepted configuration receipt from that time has not been verified; both fields remain unknown.
On 2026-10-07, the published images and film samples were actually viewed to assess composition, materials and readability; the work was neither rerendered nor modified.

Independent technical review
Unknown · Reasoning effort:Unknown

An existing review report states its model and effort, but the accepted configuration receipt from that time has not been verified; both fields remain unknown.
On 2026-10-07, public pages, downloads, hashes, archives and native file structures were checked; DCC applications were not rerun, and interactive editing was not acceptance-tested.

Attribution and site-publication review for this revision
Unknown · Reasoning effort:Unknown

The original task record self-reported gpt-6-astra / ultra, but the original accepted-configuration receipt was not exported and cannot currently be verified. The model and reasoning effort therefore remain unknown. This self-reported history is only a lead for future verification, not backend identity attestation or retrospective attribution of the original production or earlier artistic review.
On 2026-10-07, reviewed attribution fields, validation code and desktop/mobile page screenshots for the final version of PR #17, head bfa80ead316eb182863ffb5d6f48b71f1c87c766. Did not rerun DCC applications, create the original assets or repeat artistic-quality acceptance.

Version history

  • Documentation revision 2026-10-07 ·

    Added stage-specific model names, reasoning effort and independent-review scope. Historical unknowns remain unknown; image, film and native-project bytes are unchanged, and this does not count as a new case.

  • Added publication-review attribution record ·

    Added the configured model and reasoning effort for this attribution and site-publication review, noting that the original configuration receipt was not exported. This does not rewrite the original production or earlier review records; artwork bytes are unchanged.

  • Separately added MIDI-score version ·

    An actual REAPER MIDI/ReaSynth score and sound effects were produced to this film's timing; the original silent version and all visual/original-project licenses remain unchanged.

  • Corrected publication-review attribution evidence status ·

    Retained the original task's self-reported configuration and review scope as historical leads. Because the original accepted-configuration record could not be verified, the corresponding model, reasoning effort and record status were corrected to unknown. Existing revisions, assets and score evidence are preserved; structural validation does not establish verified attribution.

English translation. Read the original Chinese text. Source evidence, downloads and native artwork retain their original language.

Prompt

Reusable prompt template
Use real DCC-MCP to create a brass four-bar demonstration instrument. Set the fixed shaft spacing to 70 mm, the input radius to 25 mm, the connecting rod to 80 mm and the rocker to 50 mm. First build editable parts and real through-holes natively in FreeCAD, checking for valid closed solids; map the actual STL data into Blender by dividing millimeters by 20. Use brass, dark red, silver, ivory and dark gray for clear materials, bevels, lighting and native text. Calculate the pivot positions for every frame from the same geometric solution, and verify native matrices, keyframe values, and save/reopen. Render 96 frames for one full cycle and edit them into an 18-second demonstration in Kdenlive, clearly distinguishing the continuously rotating input from the oscillating output. Preserve native projects, before-and-after improvements, actual MCP evidence, versions, licenses and relocation acceptance checks; do not claim dynamics or manufacturing validation.

Reusable instructions based on the actual production workflow, not the user's original wording.

Software and tools

FreeCAD
1.0.0; historical CAD creation used the 0.4.1 module implementation, while the final native-view copy used 0.4.2 source code and separate enhancements
Blender
4.3.2; a 0.1.43-compatible adapter with documented geometry, text, rendering and native-copy enhancements
Kdenlive / MLT
24.12.3 / 7.30.0; 0.1.1 with relative-media packaging enhancements
Core / Server / CLI
Historical creation and the 96-frame render used 0.20.39; final native copies, CAD views, film editing and relocation acceptance checks used 0.20.41
Units
CAD uses millimeters; illustrative Blender coordinates = CAD millimeters ÷ 20, with axes unchanged
Adapter
Historical FreeCAD 0.4.1 / final views 0.4.2, a Blender 0.1.43-compatible implementation, Kdenlive 0.1.1 and documented local enhancements
Added soundtrack / REAPER
REAPER 7.82 / stock ReaSynth;Core 0.20.41,CLI/server 0.20.42,adapter commit 867ce6837c916aa7ca89a5cb14deae9869f09d00
  • create_document / add_primitive / boolean_operation / export_geometry

    Actual FreeCAD MCP creation of 13 native parametric parts, topology and dimension checks, and STEP/STL exports

  • save_copy with visible_objects

    Scoped local enhancements save the visible final parts and camera through FreeCAD's native view API, with save/reopen verification; a representative part also has a first-open GUI acceptance check

  • create_mesh_from_data / inspect_data_geometry / create_text

    Read numerical geometry from actual native STL files and check vertices and topology; create native text and editable materials

  • set_keyframe / set_current_frame / render_scene

    97 native poses, 1455 keyframe values and 96 motion renders; pivot positions checked frame by frame

  • add_media / insert_clip / add_effect / package_project / render_project

    Actual Kdenlive MCP creation of an editable 18-second timeline, relative-media packaging and a full relocation review

  • reaper_film_score__compose_score / render_score / audit_score

    Additional typed skill: a fixed original note recipe, an actual MIDI project and stock ReaSynth, with native rendering to the picture duration, saving and reopening.

Refer to project documentation for installation, compatibility and current capabilities. This case's actual environment and execution evidence are recorded above.

Step-by-step process

  1. Start with parametric parts

    13 separate parametric parts with editable Boolean operands; every final shape is valid, closed and contains exactly one solid

  2. Let materials clarify the mechanism

    Brass input, dark red connecting rod and silver output create a clear hierarchy; real through-holes, supports, pins and end caps all come from native geometry

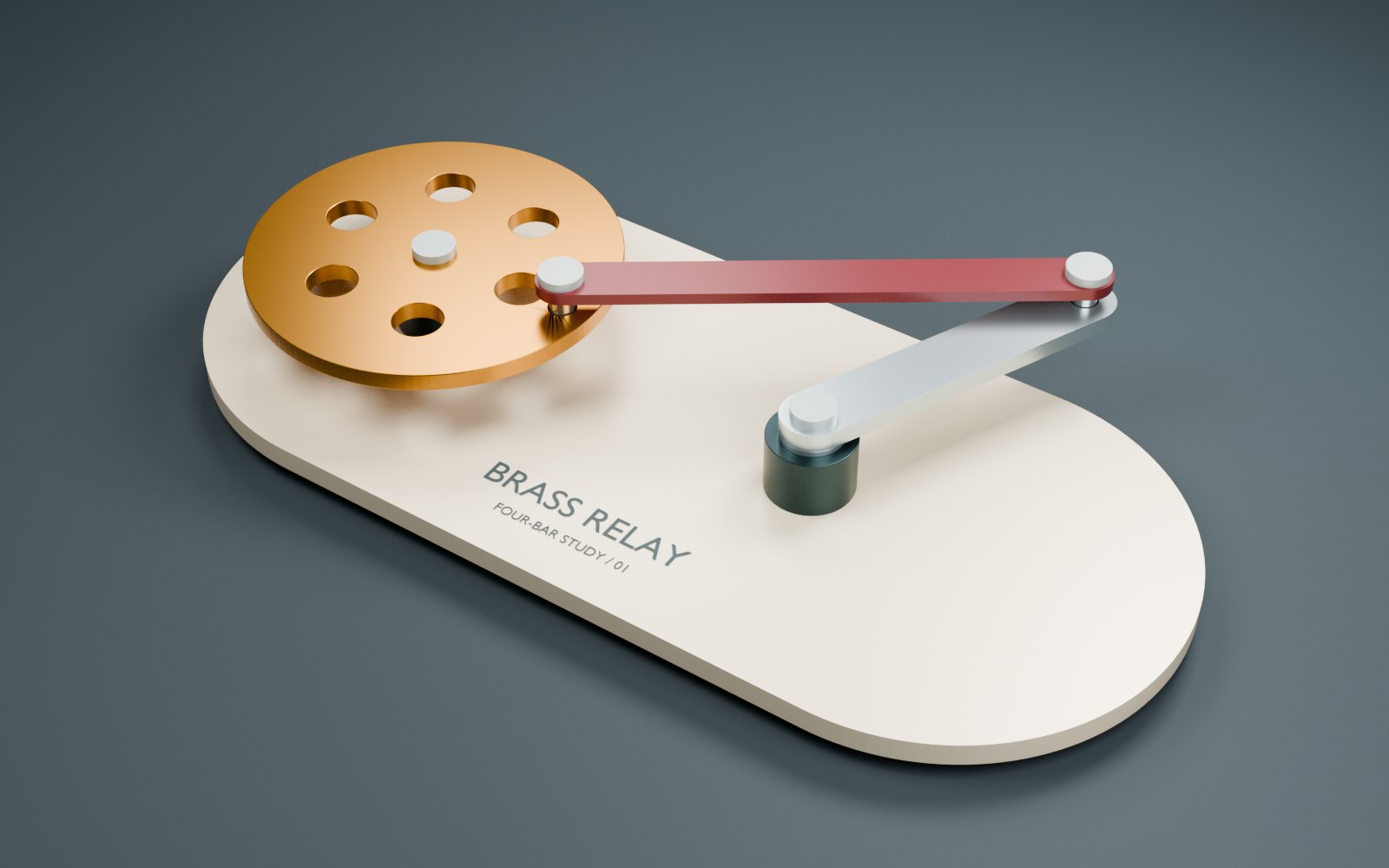

    Hero image of the complete four-bar instrument
    Hero image of the complete four-bar instrument
  3. Drive motion with one geometric solution

    Fixed link 70 mm, input 25 mm, connecting rod 80 mm, output 50 mm; maximum pivot error across the 96 natively rendered positions is 0.00000723 mm

  4. Preserve the top view and actual improvement process

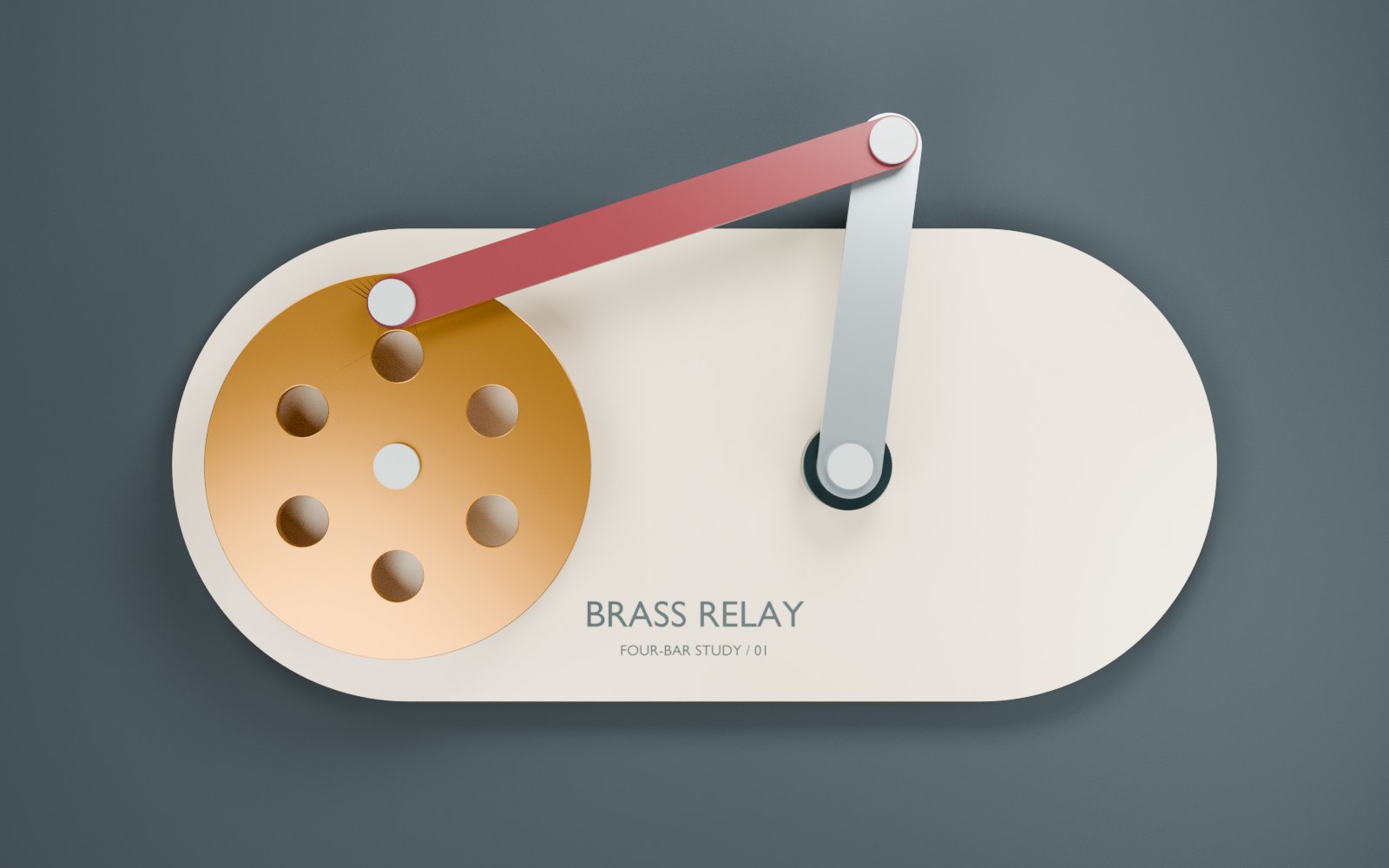

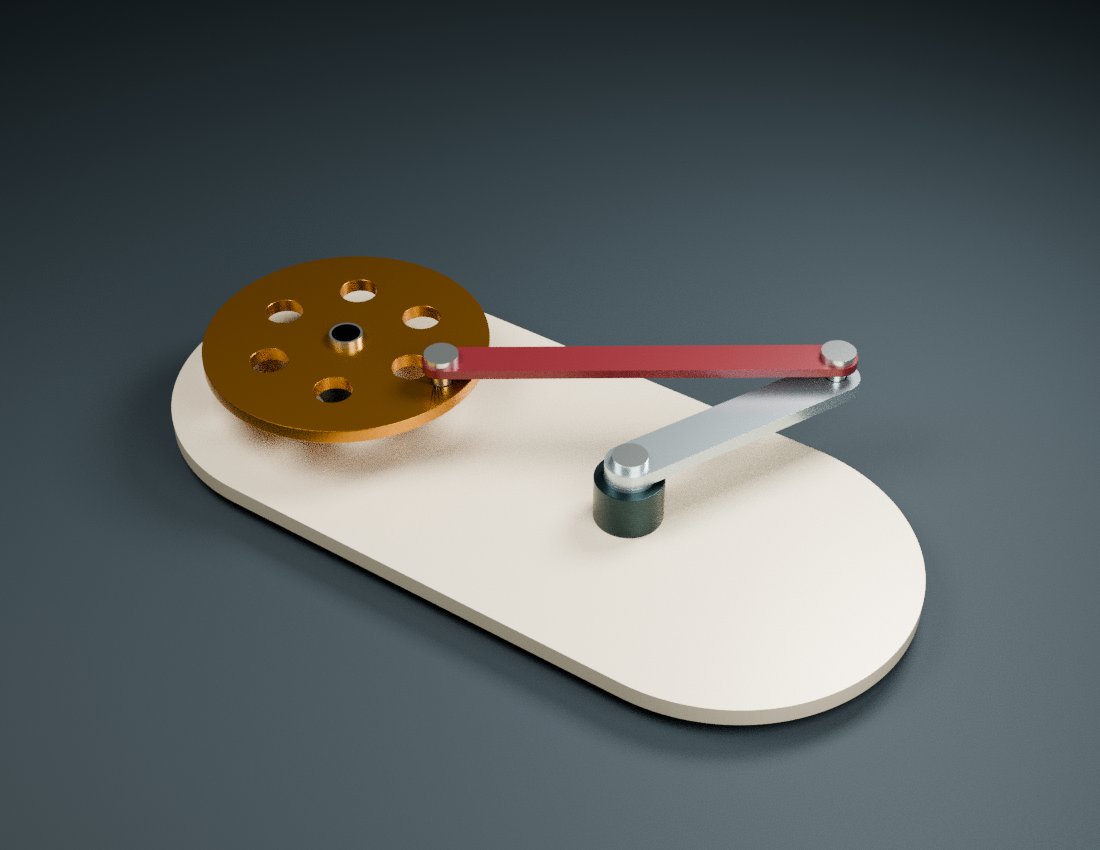

    The top-view master shows the link relationships at a 90° input angle. The early image retains its original pixels, but its camera, resolution and scene detailing differ, so it is not a same-viewpoint comparison

    Top view of the four-bar mechanism at a 90-degree input angle
    Top view of the four-bar mechanism at a 90-degree input angle
  5. From native frames to a portable film

    96 actual motion frames form a 4-second cycle, repeated twice in the film to emphasize input and output separately; all 432 video frames match when the original media is unavailable

  6. Add a native MIDI-score version

    58 editable MIDI notes synthesized by real ReaSynth; separate procedural sound-effect sources and cues organized around the published film are preserved. The original visuals and silent version are unchanged.

Models and evaluation records

Public examples, not a blind evaluation set or leaderboard. Missing values stay unrecorded and are not averaged or ranked.

No runs under a shared protocol are recorded yet; historical attribution remains in the existing stage-specific records.

Exact model version
Not recorded
Run hardware
Not recorded
Seed / attempt
Not recorded
Wall time / tool calls
Not recorded

View original checks and limits · Machine-readable records · Comparison protocol

Model preview is not enabled: eligible assets and complete ecosystem evidence are still required.

Results

Download video

Soundtrack added on 2026-10-09: 58 native MIDI notes, stock ReaSynth and original sound effects; 18.0 seconds. The original H.264 bitstream and every frame are fully preserved, and the original silent version remains below. Only the newly added standalone audio is CC0; visual rights are unchanged.
Brass Relay final hero image
Web JPEG preview of the 1600 × 1000 native PNG master
Four-bar linkage top view
The native camera and scene are preserved in a separate brass-plan.blend file

Download video

1280 × 800, 24 fps, 432 frames, 18 seconds; silent film
Actual early material and composition version
Actual early lookdev, not a same-viewpoint or same-resolution comparison; native pixels have not been repainted

Verification and boundaries

Check records; each row distinguishes historical measurements from this review.
CheckResultObservations and supporting evidence
Parametric CADPassed13 native parts; valid closed single solids, editable links, STEP volume/readback and STL geometry handoff
Native motionPassed97 native poses,1455 keyframe values;96 rendered poses have maximum hinge error7.226413753188325e-06mm
Portable BLENDPassedThree clean native copies reopen with original sources unavailable; geometry, text, camera, keys and full-production referenceRGBA match
Native CAD presentationPassed13 MCP presentation copies reopen with selected final objects and camera; representative flywheel opens visibly in actualFreeCAD withoutShow/Fit correction
Film relocationPassedAll432 decoded video-frame hashes match with original package and media unavailable
Corrected native editorPassedExact 519debe83aea23ad818b814e121024eac10abf1b08f590d3909797474886def2; empty root,98 PNGs,390 identities/styles; scoped native GUI and untouched save/reopen,432-frame headless and same-display comparisons. Parameter Undo excluded.
Public native downloadPassedBoth exact compact/full ZIPs are public in the same-repository media-only release; anonymous HTTP200 downloads matched independently audited sizes and SHA-256 hashes.
Added soundtrack and visual preservationPassedActual REAPER save, reopen and native rendering checks passed; MIDI notes=58. The H.264 stream hash and all decoded frames match the original film; AAC has no clipping and zero sample offset from the native soundtrack. No subjective listening evaluation was recorded.

Evidence limits

  • Motion uses predetermined keyframes driven by a geometric solution; it is not rigid-body dynamics, stress, load-bearing or manufacturing validation
  • Pivot error is a numerical readback result, not physical measurement precision; no continuous-time collision certification is claimed
  • 96 distinct native motion frames are repeated twice in the 18-second film; 432 different motion renders are not claimed
  • The Native CAD package contains 13 parametric parts; the full assembly is saved in Blender, with no claim of a constrained FreeCAD assembly
  • FreeCAD first-open GUI acceptance covers only a separate representative flywheel proof copy; all 13 final projects have native-view save/reopen readbacks
  • Visual acceptance of Kdenlive native controls covers only the final two effect entries and the first text field; all 390 identities and styles have serialized comparisons. Parameter editing, Undo and the final source monitor were not qualified in this run
  • Historical Core 0.20.39 creation records and final 0.20.41 qualification are retained separately; old records are not retroactively treated as acceptance of the new version
  • No claim is made of a perfectly seamless pixel loop, identical rendering across machines or a released adapter
  • The added soundtrack does not mean that the original visual project was remade. No subjective listening review is recorded, and no integration verification with a private game project is included.
